74AC74MTR

74AC74MTR, flip flop, 7 V, 20 mA, 300 MHz, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2500 :	0.30 / Piece

PartNumber:: 74AC74MTR

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-20

From Other Seller

Part Number:74AC74MTR
US $0.30 - 0.30
Quantity:

piece

Product Summary

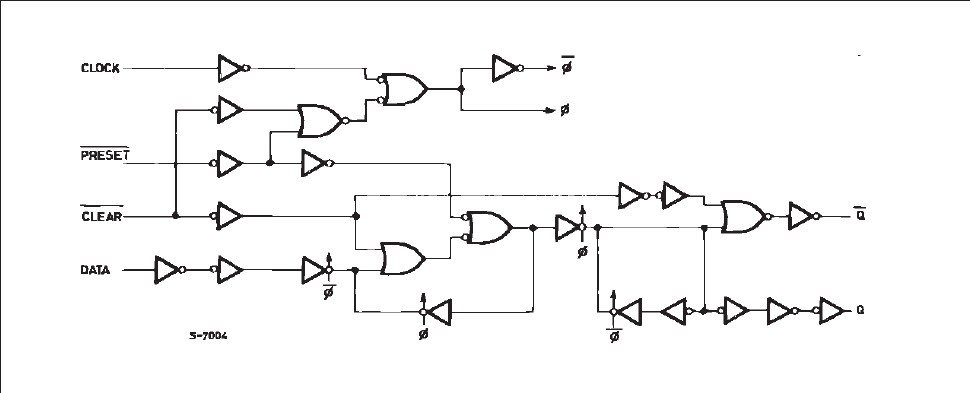

The 74AC74MTR is an advanced high-speed CMOS DUAL D-TYPE FLIP FLOP WITH PRESET AND CLEAR fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS tecnology. A signal on the D INPUT is transferred to the Q and Q OUTPUTS during the positive going transition of the clock pulse. CLEAR and PRESET are independent of the clock and accomplished by a low setting on the appropriate input. All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.

Parametrics

74AC74MTR absolute maximum ratings: (1)Supply Voltage: -0.5 to +7 V; (2)DC Input Voltage: -0.5 to VCC + 0.5 V; (3)DC Output Voltage: -0.5 to VCC + 0.5 V; (4)DC Input Diode Current: ± 20 mA; (5)DC Output Diode Current: ± 20 mA; (6)DC Output Current: ± 50 mA; (7)DC VCC or Ground Current: ± 200 mA; (8)Storage Temperature: -65 to +150 °C; (9)Lead Temperature (10 sec): 300 °C.

Features

74AC74MTR features: (1)High speed: fmax = 300MHz (TYP.)at VCC = 5V; (2)Low power dissipation: Icc = 2mA(MAX.)at TA=25°C; (3)High noise immunity: Vnih =Vnil = 28% Vcc (MIN.); (4)50W transmissioline driving capability; (5)Symmetrical output impedance: |IOH| = IOL = 24mA (MIN); (6)Balanced propagatiodelays: tPLH; tPHL; (7)Operating voltage range: Vcc (OPR)= 2V to 6V; (8)Piand functiocompatible with 74 series 74; (9)Improved latch-up immunity.
