Product Summary

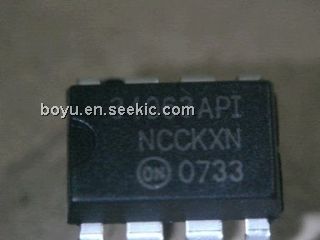

The 34063API is a monolithic control circuit containing the primary function required for DC-to-DC converter. The 34063API is a consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step-Down and Step-Up and Voltage-Inverting applications with a minimum number of external components.
Parametrics
34063API absolute maximum ratings: (1)Power Supply Voltage: 40 Vdc; (2)Comparator Input Voltage Range: -0.3 to +40 Vdc; (3)Switch Collector Voltage: 40 Vdc; (4)Switch Emitter Voltage: 40 Vdc; (5)Switch Collector to Emitter Voltage: 40 Vdc; (6)Driver Collector Voltage IC: 40 Vdc; (7)Driver Collector Current: 100 mA; (8)Switch Current: 1.5 A .
Features
34063API features: (1)Operation from 3.0 V to 40 V Input; (2)Low Standby Current; (3)Current Limiting; (4)Output Switch Current to 1.5 A; (5)Output Voltage Adjustable; (6)Frequency Operation to 100 kHz; (7)Precision 2% Reference.
Diagrams
