Product Summary

The 2SA812-T1B M5 is an audio frequency,general purpose amplifier PNP silicon epitaxial transistor mini mold.

Parametrics

2SA812-T1B M5 absolute maximum ratings: (1)Collector to Base Voltage VCBO: -60 V; (2)Collector to Emitter Voltage VCEO: -50 V; (3)Emitter to Base Voltage VEBO: -5.0 V; (4)Collector Current (DC)IC: -100 mA; (5)Total Power Dissipation PT: 200 mW; (6)Junction Temperature Tj: 150 °C; (7)Storage Temperature Range Tstg: -55 to +150 °C.

Features

2SA812-T1B M5 features: (1)Complementary to 2SC1623; (2)High DC Current Gain: hFE = 200 TYP. (VCE = -6.0 V, IC = -1.0 mA)); (3)High Voltage: VCEO = -50 V.

Diagrams

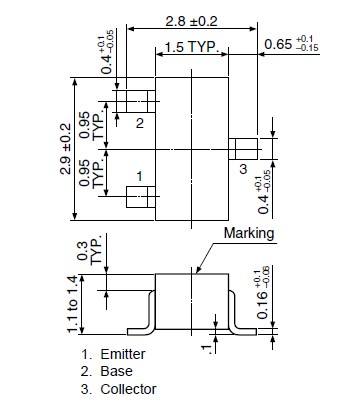

2SA812-T1B M5 pin connection
