Product Summary

The 1N4002 is a plastic silicon rectifier.

Parametrics

1N4002 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 100V; (2)Maximum RMS Voltage: 75V; (3)Maximum DC Blocking Voltage: 100V; (4)Maximum Average Forward Rectified Current .375 (9.5mm)Lead Length at TA=75 ¢J: 1.0 A; (5)Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (JEDEC method): 30 A; (6)Maximum Forward Voltage at 1.0A DC and 25 ¢J: 1.1 V; (7)Operating and Storage Temperature Range TJ,TSTG: -55 to +150°C.

Features

1N4002 features: (1)Low forward voltage drop; (2)High current capability; (3)High reliability; (4)High surge current capability; (5)Exceeds environmentastandards of MIL-S-19500/228.

Diagrams

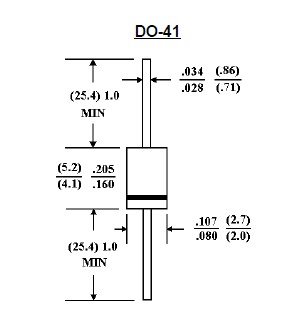

1N4002 pin connection
