Product Summary

The uln2803adwr is a high-voltage, high-current Darlington transistor array. The uln2803adwr consists of eight npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of each Darlington pair is 500 mA. The Darlington pairs may be connected in parallel for higher current capability. Applications include relay, hammer, lamp and display (LED) drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.

Parametrics

uln2803adwr absolute maximum ratings: (1)Output sustaining voltage, VCE (SUS): -0.5~50 V; (2)Output current, IOUT: 500 mA / ch; (3)Input voltage, VIN: -0.5~30 V; (4)Clamp diode reverse voltage, VR: 50 V; (5)Clamp diode forward current, IF: 500 mA; (6)Power dissipation, PD, APG: 1.47W; AFWG: 0.92 / 1.31W; (7)Operating temperature, Topr: -40~85℃; (8)Storage temperature, Tstg: -55~150℃.

Features

uln2803adwr features: (1)Output current (single output) 500 mA (Max.); (2)High sustaining voltage output 50 V (Min.); (3)Output clamp diodes; (4)Inputs compatible with various types of logic; (5)Package Type-APG: DIP-18pin; (6)Package Type-AFWG: SOL-18pin.

Diagrams

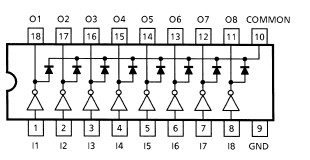

uln2803adwr pin connection
