Product Summary
The STD1NK60T4 is a MOSFET. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. The STD1NK60T4 complements ST full range of high voltage MOSFET including revolutionary MDmesh product. Applications are (1)Low power battery chargers; (2)Swith mode low power supplies(SMPS); (3)Low power, ballast, CFL (compact fluorescent lamps).
Parametrics
STD1NK60T4 absolute maximum ratings: (1)VDS, drain-source voltage (VGS = 0): 600 V; (2)VDGR, drain-gate voltage (RGS = 20 kΩ): 600 V; (3)VGS, gate- source voltage: ± 30 V; (4)ID, drain current (continuous)at TC = 25°C: 1.0 A; (5)ID, drain current (continuous)at TC = 100°C: 0.63 A; (6)IDM, drain current (pulsed): 4 A; (7)PTOT, total dissipation at TC = 25°C: 30 W; (8)Derating factor: 0.24 W/°C; (9)dv/dt (1), peak diode recovery voltage slope: 3 V/ns; (10)Tj, operating junction temperature: -55 to 150 °C; (11)Tstg, storage temperature: -55 to 150 °C.
Features
STD1NK60T4 features: (1)Typical RDS(on)= 8 Ω; (2)Extremely high dv/dt capability; (3)ESD improved capability; (4)100% avalanche tested; (5)New high voltage benchmark; (6)Gate charge minimized.

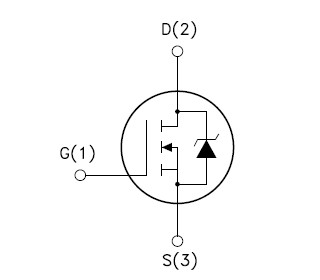

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STD1NK60T4 |
STMicroelectronics |
MOSFET N-Ch 600 Volt 1.0Amp Zener SuperMESH |
Data Sheet |
|
|
|||||||||||||
