Product Summary
The mbr20100ct-1 is a SCHOTTKY rectifier. This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150℃ junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
Parametrics
mbr20100ct-1 absolute maximum ratings: (1)Max. Average Forward Current: 10 A; (2)Peak Repetitive Forward Current: 20 A; (3)Non Repetitive Peak Surge Current: 850 A; (4)Peak Repetitive Reverse Surge Current: 0.5 A; (5)Non-Repetitive Avalanche Energy: 24 mJ.
Features
mbr20100ct-1 features: (1)150℃ TJ operation; (2)Center tap TO-220, D2Pak and TO-262 packages; (3)Low forward voltage drop; (4)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability.

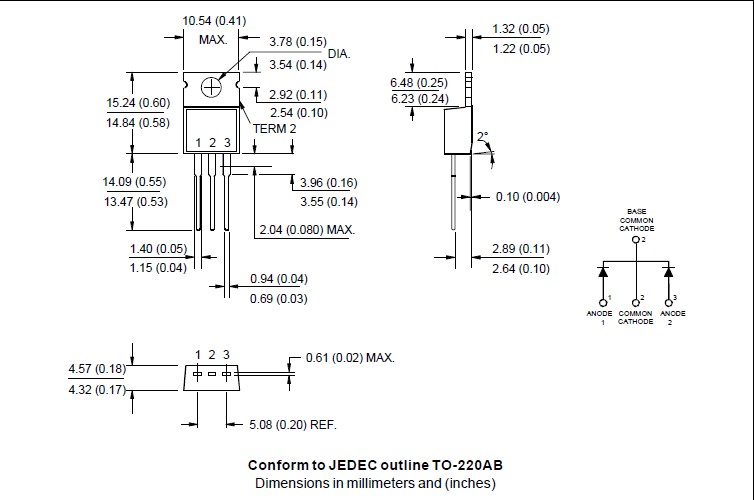

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MBR20100CT-1 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 20 Amp 100 Volt Common Cathode |
Data Sheet |
Negotiable |
|
||||||
 |
MBR20100CT-1PBF |
|
DIODE SCHOTTKY 100V 10A TO262 |
Data Sheet |
|
|
||||||
