Product Summary
The m62334fp is an integrated circuit semiconductor of CMOS structure with 4 channels of built in D-A converters with output buffer operational amplifiers. The input is 2-wires serial method is used for the transfer format of digital data to allow connection with a microcomputer with minimum wiring. The m62334fp employs AB class output circuit with sync and source drive capacity of 1.0mA or more,and it operates in the whole voltage range from Vcc to ground. Applications are (1)conversion from digital data to analog control data for home-use and industrial equipment; (2)signal gain control or automatic adjustment of displaymonitor or CTV.
Parametrics
m62334fp absolute maximum ratings: (1)Supply voltage: -0.3 to 7.0V; (2)Input voltage: -0.3 to Vcc+0.3V; (3)Output voltage: -0.3 to Vcc+0.3V; (4)Power dissipation: 417 (DIP)/ 272 (FP)mW; (5)Operating temperature: -20 to 85°C; (6)Storage temperature: -55 to 125°C.
Features
m62334fp features: (1)Up to 3A Output Current; (2)Wide 4.75V to 23V Operating Input Range; (3)Monolithic Synchronous Buck with 100mΩ High-Side and Low-Side FETs; (4)Fixed 340KHz Frequency; (5)All Ceramic Input and Output Capacitors; (6)Programmable Soft-Start; (7)Programmable Input Under Voltage Lockout.

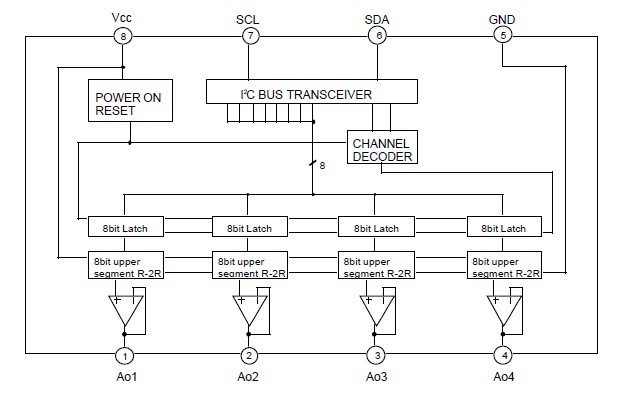

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M62334FP |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
