Product Summary

The irfi740g is a Power MOSFET. Third Generation HEXFETs from International Rectifier provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 Fullpak eliminates the need for additional insulating hardware in commercial-industrial applications. The moulding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. This isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. The Fu/lpak is mounted to a heatsink using a single clip or by a single screw fixing.

Parametrics

irfi740g absolute maximum ratings: (1)Continuous Drain Current: 5.4 A; (2)Pulsed Drain Current: 22 A; (3)Power Dissipation: 40 W; (4)Linear Derating Factor: 0.32 W/℃; (5)Gate-to-Source Voltage: ±20 V; (6)Single Pulse Avalanche Energy: 390 mJ; (7)Avaianche Current: 5.4 A; (8)Operating Junction and Storage Temperature Range: -55 to +150 ℃.

Features

irfi740g features: (1)Isolated Package; (2)High Voltage lsolatione 2.5KVRMS ; (3)Sink to Lead Creepage Dist.= 4.8mm; (4)Dynamic dv/dt Rating; (5)Low Thermal Resistance.

Diagrams

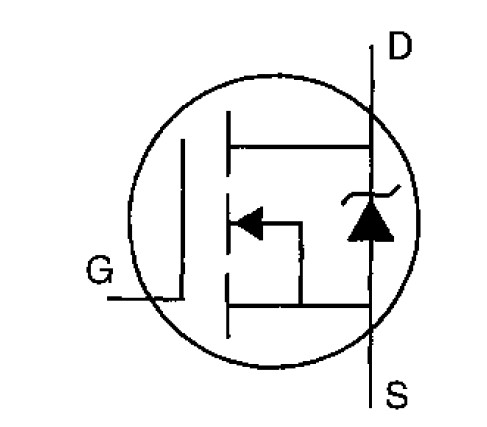

irfi740g block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFI740G
IRFI740G
Vishay/Siliconix
MOSFET N-Chan 400V 5.4 Amp
Data Sheet
0-725: $2.08
725-1000: $2.00
1000-2000: $1.94
IRFI740G, SiHFI740G
IRFI740G, SiHFI740G
Other

Data Sheet
Negotiable
IRFI740GPBF
IRFI740GPBF
Vishay/Siliconix
MOSFET N-Chan 400V 5.4 Amp
Data Sheet
0-1: $1.47
1-10: $1.18
10-100: $1.06
100-250: $0.95
IRFI740GLCPBF
IRFI740GLCPBF
Vishay/Siliconix
MOSFET N-Chan 400V 5.7 Amp
Data Sheet
0-1: $2.52
1-10: $2.09
10-100: $1.76
100-250: $1.42
IRFI740GLC
IRFI740GLC
Vishay/Siliconix
MOSFET N-Chan 400V 5.7 Amp
Data Sheet
0-725: $2.77
725-1000: $2.65
1000-2000: $2.59
