Product Summary
The BYD37M is a Fast soft-recovery controlled avalanche rectifier. Cavity free cylindrical glass package through Implotec technology. This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
Parametrics
BYD37M absolute maximum ratings: (1)VRRM repetitive peak reverse voltage: 1000 V; (2)VR continuous reverse voltage:1000 V; (3)IF(AV) average forward current: 1.5 A; (4)IFRM repetitive peak forward current: 5.5 A.
Features
BYD37M features: (1)Glass passivated; (2)High maximum operating temperature; (3)Low leakage current; (4)Excellent stability; (5)Guaranteed avalanche energy absorption capability; (6)Smallest surface mount rectifier outline; (7)Shipped in 8 mm embossed tape.

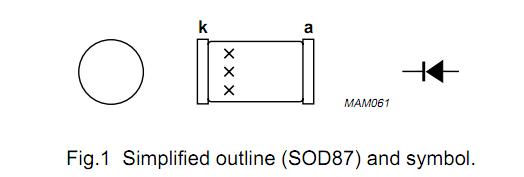

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
BYD37M |
Other |
Data Sheet |
Negotiable |
|
||||||
BYD37M,115 |
DIODE AVAL GPP 1.5A 1000V SOD87 |
Data Sheet |
Negotiable |
|
