Product Summary

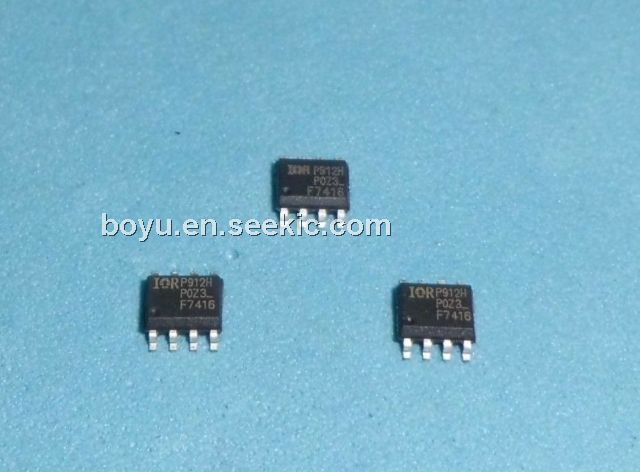

The IRF7416 is a HEXFET Power MOSFET. Fifth Generation HEXFETs of the IRF7416 from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized IRF7416 design that HEXFET Power MOSFET is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The SO-8 has been modified through a customized leadframe for enhanced thermal characteristics and multiple-die capability making it ideal in a variety of power applications. With these improvements, multiple device can be used in an application with dramatically reduced board space. The package of the IRF7416 is designed for vapor phase, infra red, or wave soldering techniques. Power dissipation of greater than 0.8W is possible in a typical PCB mount application.

Parametrics

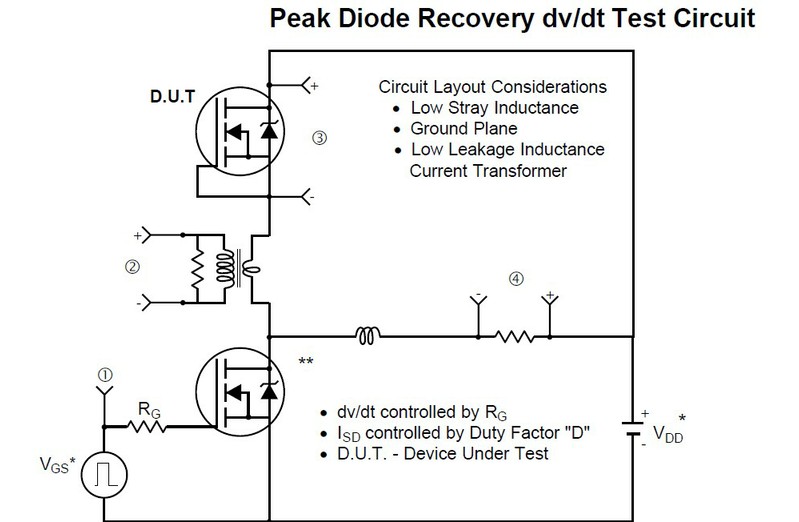

IRF7416 absolute maximum ratings: (1)ID @ TA = 25℃ Continuous Drain Current, VGS @ -10V: -10A; (2)ID @ TA = 70℃ Continuous Drain Current, VGS @ - 10V: -7.1A; (3)IDM Pulsed Drain Current: -45; (4)PD @TA = 25℃ Power Dissipation: 2.5; (5)Linear Derating Factor: 0.02 mW/℃; (6)VGS Gate-to-Source Voltage: ± 20 V; (7)EAS Single Pulse Avalanche Energy: 370 mJ; (8)dv/dt Peak Diode Recovery dv/dt: -5.0 V/ns; (9)TJ, TSTG Junction and Storage Temperature Range: -55 to + 150 ℃.

Features

IRF7416 features: (1)Generation V Technology; (2)Ultra Low On-Resistance; (3)P-ChanneMosfet; (4)Surface Mount; (5)Available in Tape & Reel; (6)Dynamic dv/dt Rating; (7)Fast Switching.
