Product Summary

The 30bq060pbf is a schottky rectifier. It has been designed for applications requiring low forward drop and small foot prints on PC boards. The applications of the 30bq060pbf include small foot print, surface mountable, very low forward voltage drop, high frequency operation, guard ring for enhanced ruggedness and low term reliability.

Parametrics

30bq060pbf absolute maximum ratings: (1)IF: 3A; (2)VRRM: 40V; (3)IFSM: 2000A; (4)VF: 0.43V; (5)TJ range: -55 to 150℃.

Features

30bq060pbf features: (1)Small foot print, surface mountable; (2)Very low forward voltage drop; (3)High frequency operation; (4)Guard ring for enhanced ruggedness and long term; (5)reliability.

Diagrams

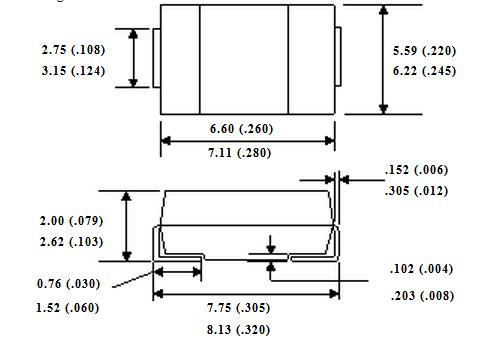

30bq060pbf pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
30BQ060PBF
30BQ060PBF

DIODE SCHOTTKY 60V 3A SMC
Data Sheet
0-1: $0.50
1-10: $0.44
10-25: $0.39
25-100: $0.34
100-250: $0.29
250-500: $0.25
500-1000: $0.20
1000-2500: $0.18
2500-5000: $0.17
