Product Summary
The 2sd0601arl is a kind of Silicon NPN epitaxial planer type transistor for general amplification.
Parametrics
2sd0601arl absolute maximum ratings: (1)Collector-to-Base Voltage, VCBO: 60 V; (2)Collector-to-Emitter Voltage, VCEO: 50 V; (3)Emitter-to-Base Voltage, VEBO: 7 V; (4)Collector Current, IC: 100 mA; (5)Collector Current (Pulse), ICP: 200 mA; (6)Collector Dissipation, PC: 200 mW; (7)Junction Temperature, Tj: 150℃; (8)Storage Temperature, Tstg: -55 to +150℃.
Features
2sd0601arl features: (1)High foward current transfer ratio hFE; (2)Low collector to emitter saturation voltage VCE(sat); (3)Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing.

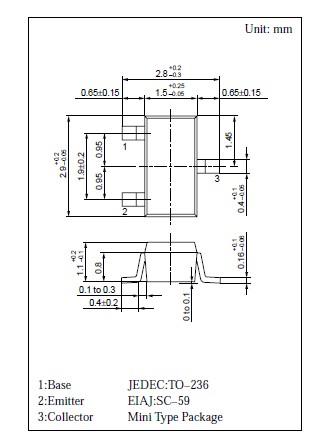

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 2SD0601ARL |
![]() |
![]() TRANS NPN GP AMP 50VCEO MINI 3P |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||
