Product Summary
The emif03-sim02m8 is an EMI filter. The emif03-sim02m8 is a 3 line highly integrated device designed to suppress EMI/RFI noise in all systems exposed to electromagnetic interference. This filter includes ESD protection circuitry, which prevents damage to the application when subjected to ESD surges up to 15 kV on the external pins. The applications of the emif03-sim02m8 include Keyboard for mobile phones, Computers and printers, Communication systems and MCU boards.
Parametrics
emif03-sim02m8 absolute maximum ratings: (1)ESD discharge IEC 61000-4-2 air discharge: 2 KV; (2)Junction temperature: 125 ℃; (3)Operating temperature range: -40 to + 85 ℃; (4)Storage temperature range: -55 to +150 ℃.
Features
emif03-sim02m8 features: (1)SIM card EMI low-pass filter; (2)High efficiency in EMI filtering; (3)Very low PCB space consumption: 1.7 mm x 1.5 mm; (4)Very thin package: 0.6 mm max; (5)High efficiency in ESD suppression on external pins (IEC 61000-4-2 level 4); (6)High reliability offered by monolithic integration; (7)High reduction of parasitic elements through integration and wafer level packaging; (8)Lead free package; (9)Easy layout and flexibility thanks to I/O topology; (10)Low clamping voltage.

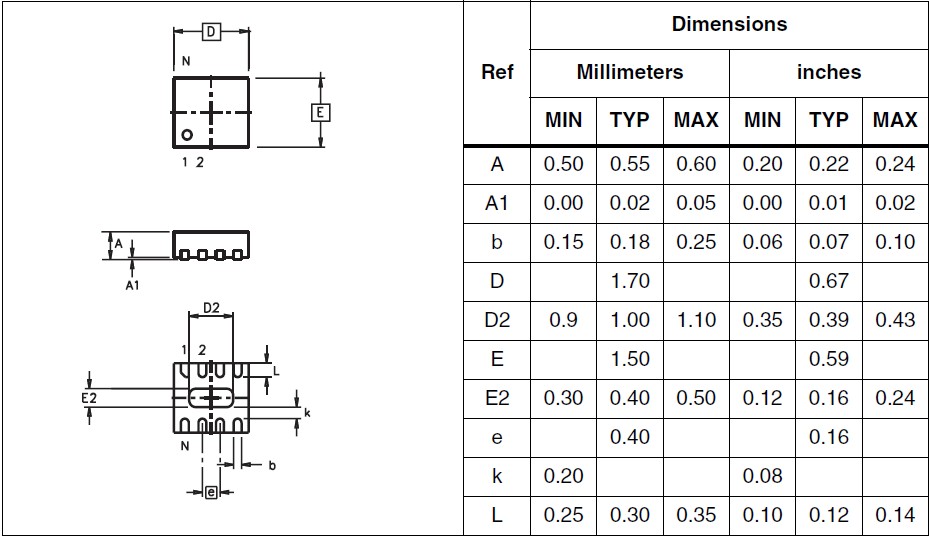

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EMIF03-SIM02M8 |
STMicroelectronics |
ESD Suppressors 3-line Int EMI/RFI 15kV 17pF |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
EMIF01-100 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
EMIF01-10005W5 |
STMicroelectronics |
Signal Conditioning EMI Filter w/ESD Pro |
Data Sheet |
|
|
||||||||||||
|
EMIF01-10018W5 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
EMIF01-1003M3 |
STMicroelectronics |
Signal Conditioning SNGL line EMI filter 30pF -27db @ 900MHz |
Data Sheet |
|
|
||||||||||||
|
EMIF01-110 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
EMIF01-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
