Product Summary
The rclamp0524p.tct is an ultra low-capacitance tvs array. The rclamp0524p.tct has a typical capacitance of only 0.30pF between I/O pins. This allows it to be used on circuits operating in excess of 3GHz without signal attenuation. They may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge). The RClamp0522P is designed to protect two lines, while the RClamp0524P will protect four lines. The rclamp0524p.tct can be applied in high definition multi-media interface (hdmi), digital visual interface (dvi), unified display interface (udi), displayport interface, mddi ports, pci express, and serial ata.
Parametrics
rclamp0524p.tct absolute maximum ratings: (1)Peak Pulse Power (tp = 8/20μs): 150 Watts; (2)Peak Pulse Current (tp = 8/20μs): 5 A; (3)ESD per IEC 61000-4-2 (Contact): +/-12KV; (4)Operating Temperature: -55 to +125°C; (5)Storage Temperature: -55 to +150°C.
Features
rclamp0524p.tct features: (1)ESD protection for high-speed data lines to: IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)/IEC 61000-4-5 (Lightning) 5A (8/20μs); (2)/IEC 61000-4-4 (EFT) 40A (5/50ns); (3)Package design optimized for high speed lines; (4)Flow-Through design; (5)Protects two or four I/O lines; (6)Low capacitance: 0.3pF typical (I/O to I/O); (7)Low clamping voltage; (8)Low operating voltage: 5V; (9)Solid-state silicon-avalanche technology.°C

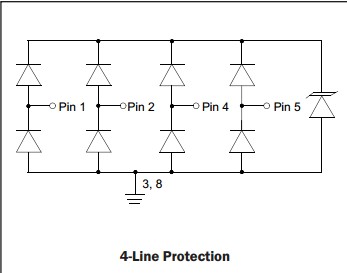

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RCLAMP0524P.TCT |
TVS ARRAY SLP2510P8 10-PIN |
Data Sheet |
|
|
||||||||||||||
