Product Summary
The ip4220cz6 is a Dual USB 2.0. It is designed to protect I/Os being sensitive concerning capacitive load, such as USB 2.0, Ethernet, DVI etc. from destruction by Electro Static Discharges (ESD). Therefore, the ip4220cz6 incorporates four pairs of ultra-low capacity rail-to-rail diodes plus an additional Zener diode to provide protection to downstream signal and supply components from Electrostatic Discharge (ESD) voltages as high as ±8 kV contact discharge. The applications of the ip4220cz6 are Cellular and PCS mobile handsets, PC-/Notebook USB2.0/IEEE1394 ports, DVI interfaces, Cordless telephones, Wireless data (WAN/LAN) systems, PDAs.
Parametrics
ip4220cz6 absolute maximum ratings: (1)DC input voltage range:0V to +5.5V; (2)Electrostatic Discharge, all pins:-8kV to +8kV; (3)Device storage temperature range:-55 to +125℃; (4)Operating temperature range:-40 to +85℃.
Features
ip4220cz6 features: (1)ESD IEC 61000-4-2 level 4, ± 8kV contact discharge; (2)compliant protection; (3)Four ultra-low input capacitance (1 pF typ.); (4)ESD rail-to-rail protection diodes; (5)Low voltage clamping due to integrated Zener diode ; (6)Small 6 lead SO6 (SOT457) package.

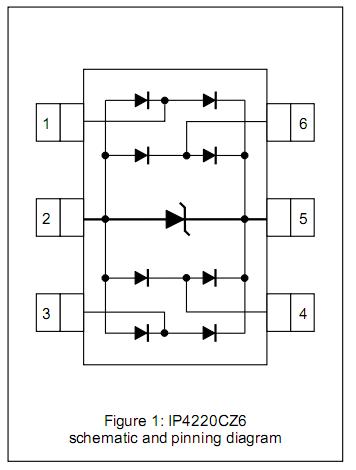

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IP4220CZ6 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
IP4220CZ6,125 |
NXP Semiconductors |
ESD Suppressors USB2.0 ESD PROTECT DUAL |
Data Sheet |
|
|
||||||||||||
