Product Summary

The DALC208SC6 is a low capacitance diode array. It is designed to protect components which are connected to data and transmission lines from overvoltages caused by electrostatic discharge (ESD) or other transients. The DALC208SC6 is a rail-to-rail protection device also suited for overshoot and undershoot suppression on sensitive logic inputs. The low capacitance of the DALC208SC6 prevents from significant signal distortion. Applications are (1)Sensitive logic input protection; (2)Microprocessor based equipment; (3)Audio / Video inputs; (4)Portable electronics; (5)Networks; (6)ISDN equipment; (7)USB interface.

Parametrics

DALC208SC6 absolute maximum ratings: (1)IEC1000-4-2, air discharge: 15 kV; (2)IEC1000-4-2, contact discharge: 8 kV; (3)Peak reverse voltage per diode: 9 V; (4)Reference voltage gap between VREF2 and VREF1: 9 V; (5)Continuous forward current (single diode loaded): 200 mA; (6)Repetitive peak forward current (tp = 5 ms, F = 50 kHz): 700 mA; (7)Surge non repetitive forward current - rectangular waveform (see curve on figure 1)tp = 2.5 μs: 6 A; tp = 1 ms: 2 A; tp = 100 ms: 1 A; (8)Storage temperature range: -55 to + 150 °C; (9)Maximum junction temperature: 150 °C.

Features

DALC208SC6 features: (1)Protection of 4 lines; (2)Peak reverse voltage:; (3)VRRM = 9 V per diode; (4)Very low capacitance per diode: C < 5 pF; (5)Very low leakage current: IR < 1 mA.

Diagrams

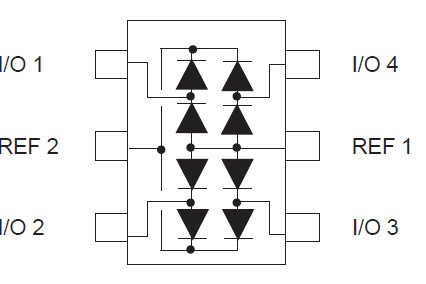

DALC208SC6 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

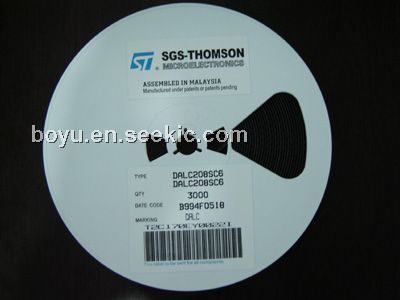

DALC208SC6
DALC208SC6
STMicroelectronics
Rectifiers 8 Diode Array
Data Sheet
0-1: $0.50
1-10: $0.45
10-100: $0.37
100-250: $0.34
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DALC112S1RL
DALC112S1RL
STMicroelectronics
Rectifiers 12 Diode Array
Data Sheet
0-1: $0.59
1-25: $0.54
25-100: $0.47
100-250: $0.39
DALC208SC6
DALC208SC6
STMicroelectronics
Rectifiers 8 Diode Array
Data Sheet
0-1: $0.50
1-10: $0.45
10-100: $0.37
100-250: $0.34
