Product Summary
The tc74vhc245ft is an advanced high speed CMOS OCTAL BUS TRANSCEIVER fabricated with silicon gate C2MOS technology. The tc74vhc245ft achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The tc74vhc245ftis intended for two-way asynchronous communication between data busses. The direction of data transmission is determined by the level of the DIR input. The enable input (G ) can be used to disable the device so that the busses are effectively isolated.
Parametrics
tc74vhc245ft absolute maximum ratings: (1)Supply voltage range VCC: -0.5 to 7.0 V; (2)DC input voltage (DIR, G)VIN: -0.5 to 7.0 V; (3)DC bus I/O voltage VI/O: -0.5 to VCC + 0.5 V; (4)Input diode current IIK: -20 mA; (5)Output diode current IOK: ±20 mA; (6)DC output current IOUT: ±25 mA; (7)DC VCC/ground current ICC: ±75 mA; (8)Power dissipation PD 180 mW; (9)Storage temperature Tstg: -65 to 150 °C.
Features
tc74vhc245ft features: (1)High speed: tpd = 4.0 ns (typ.)at VCC = 5 V; (2)Low power dissipation: ICC = 4 μA (max)at Ta = 25°C; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Balanced propagation delays: tpLH = tpHL; (5)Wide operating voltage range: VCC (opr)= 2 V to 5.5 V; (6)Low noise: VOLP = 1.2 V (max); (7)Pin and function compatible with 74ALS245.

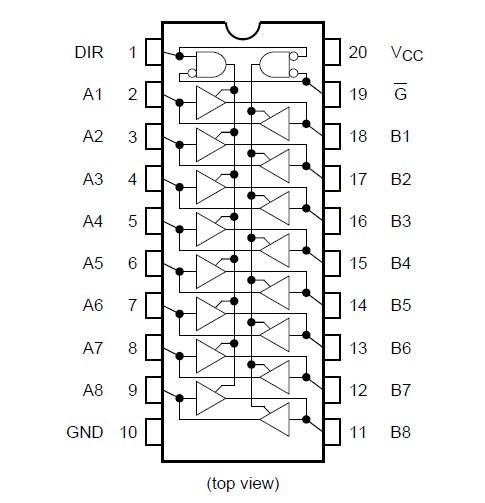

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() TC74VHC245FT(EL) |
![]() |
![]() IC BUS TRANSCVR 8BIT 20TSSOP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() TC74VHC245FT(EL,M) |
![]() |
![]() IC BUS TRANSCVR 8BIT 20TSSOP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() TC74VHC245FTELKM |
![]() Toshiba |
![]() Bus Transceivers Transceiver |
![]() Data Sheet |
![]()
|
|
