Product Summary

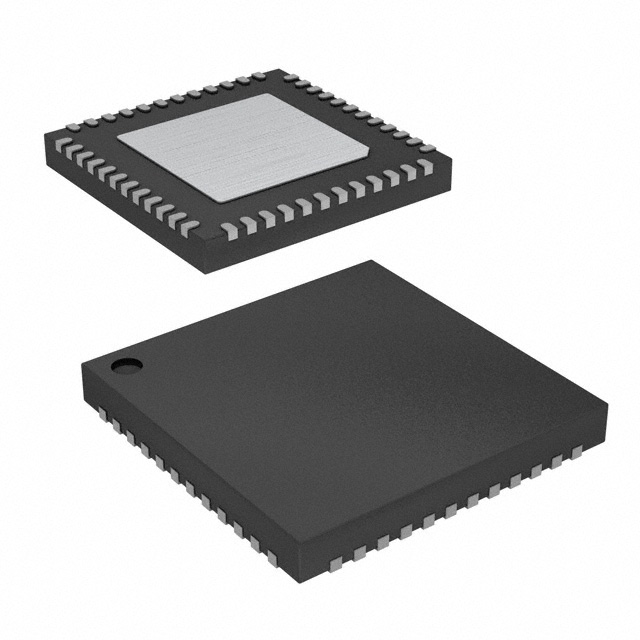

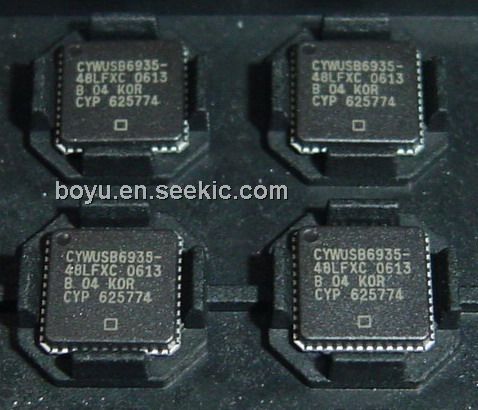

The CYWUSB6935 is a transceiver. It is a single-chip 2.4-GHz direct sequence spread spectrum (DSSS) gaussian frequency shift keying (GFSK) baseband modem radio that connects directly to a microcontroller via a simple serial peripheral interface. The CYWUSB6935 is offered in an industrial temperature range 48-pin QFN and a commercial temperature range 48- pin QFN. Applications are (1)Building/Home automation: Climate control; Lighting control; Smart appliances; On-Site paging systems; Alarm and security; (2)Industrial control: Inventory management; Factory automation; Data acquisition; (3)Automatic meter reading (AMR); (4)Transportation: Diagnostics; Remote keyless entry; (5)Consumer / PC: Locator alarms; Presenter tools; Remote controls; Toys.
Parametrics
CYWUSB6935 absolute maximum ratings: (1)Storage temperature: –65°C to +150°C; (2)Ambient temperature with power applied: –55°C to +125°C; (3)Supply voltage on VCC relative to VSS: –0.3V to +3.9V; (4)DC voltage to logic inputs[7]: –0.3V to VCC +0.3V; (5)DC voltage applied to outputs in high-Z state: –0.3V to VCC +0.3V; (6)Static discharge voltage (Digital)[8]: >2000V; (7)Static discharge voltage (RF)[8]: 500V; (8)Latch-up current: +200 mA, –200 mA.
Features
CYWUSB6935 features: (1)2.4-GHz radio transceiver; (2)Operates in the unlicensed Industrial, Scientific, and Medical (ISM)band (2.4 GHz–2.483 GHz); (3)–95-dBm receive sensitivity; (4)Up to 0dBm output power; (5)Range of up to 50 meters or more; (6)Data throughput of up to 62.5 kbits/sec; (7)Highly integrated low cost, minimal number of external components required; (8)Dual DSSS reconfigurable baseband correlators; (9)SPI microcontroller interface (up to 2-MHz data rate); (10)13-MHz input clock operation; (11)Low standby current < 1 μA; (12)Integrated 30-bit Manufacturing ID; (13)Operating voltage from 2.7V to 3.6V; (14)Operating temperature from –40° to 85°C; (15)Offered in a small footprint 48 QFN.

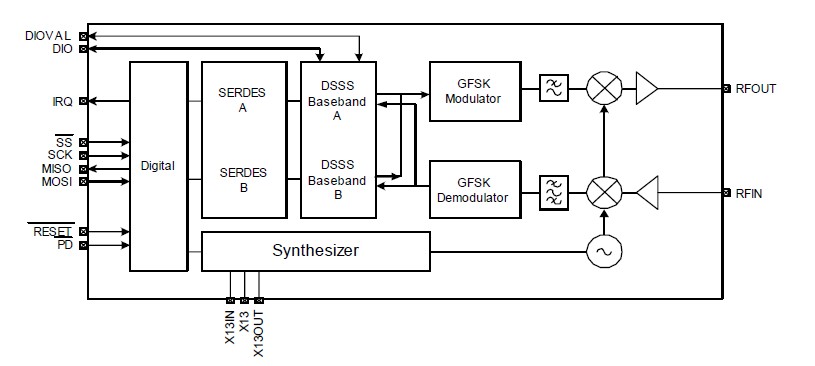

Diagrams
