Product Summary
The PVAZ172NS is a photovoltaic relay. It is a singlepole, normally open solid state relay that can replace electromechanical relays used for general purpose switching of DC and AC loads. The PVAZ172NS utilizes international rectifier HEXFET power MOSFETs as the output switches, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED) which is optically isolated from the photovoltaic generator. Applications are (1)Portable electronics; (2)Programmable logic controllers; (3)Computers and peripheral devices; (4)Audio equipment; (5)Power supplies and power distribution; (6)Instrumentation.
Parametrics
PVAZ172NS absolute maximum ratings: (1)Min. Control current: 10 mA; (2)Max. Control current for off-state resistance @ TA=+25°C: 0.4 mA; (3)Control current range (Caution: Current limit input LED, see Fig.6): 5.0 to 25 mA; (4)Max. Reverse voltage: 7.0 V; (5)Dielectric strength, input-output: 4000 V(RMS); (6)Insulation resistance, input-output , 90 VDC: 1012 @TA=+25°C - 50% RH Ω; (7)Capacitance, input-output: 1.0 pF; (8)Lead temperature (1.6mm below seating plane)for 10 sec: +260 °C; (9)Ambient temperature range: Operating: -40 to +85 °C; Storage: -40 to +100 °C.
Features
PVAZ172NS features: (1)500mW On-Resistance; (2)Bounce-free operation; (3)1.0 Amp capacity; (4)4000 VRMS I/O isolation; (5)Solid-State reliability; (6)UL recognition and CSA certification pending.

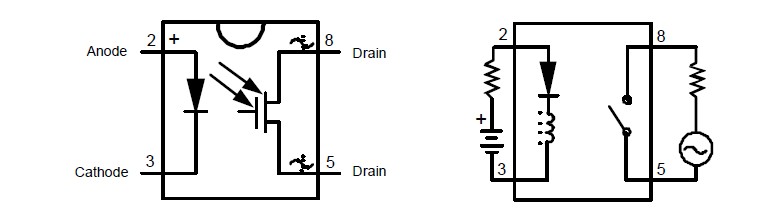

Diagrams

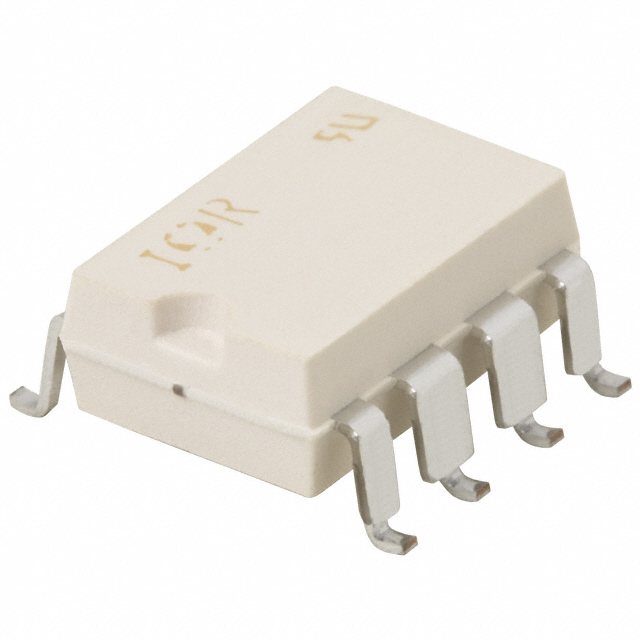

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PVAZ172NS |
|
IC RELAY PHOTOVO 60V 1.0A 8-SMD |
Data Sheet |
|
|
||||||||||||
 |
PVAZ172NSPBF |
International Rectifier |
Solid State Relays |
Data Sheet |
|
|
||||||||||||
|
PVAZ172NS-TPBF |
International Rectifier |
Solid State Relays 60V 1 Form A PhotoVoltaic Rly |
Data Sheet |
|
|
||||||||||||
