Product Summary
The PVDZ172NS-T Photovoltaic Relay is a single-pole, normally open solid state relay that can replace electromechanical relays used for general purpose switching of DC loads. The PVDZ172NS-T utilizes International Rectifier HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED) which is optically isolated from the photovoltaic generator.Typical applications of the PVDZ172NS-T include: (1)Portable Electronics; (2)Programmable Logic Controllers; (3)Computers and Peripheral Devices; (4)Audio Equipment; (5)Power Supplies and Power Distribution; (6)Instrumentation.
Parametrics
PVDZ172NS-T absolute maximum ratings: (1)Dielectric Strength, Input-Output: 4000 V(RMS); (2)Insulation Resistance, Input-Output , 90 VDC: 1012 @TA=+25℃ - 50% RH Ω; (3)Capacitance, Input-Output: 1.0 pF; (4)Lead Temperature (1.6mm below seating plane) for 10 seconds: +260℃; (5)Ambient Temperature Range: Operating: -40 to +85℃; Storage: -40 to +100℃.
Features
PVDZ172NS-T features: (1)250mΩ¸ On-Resistance; (2)Bounce-Free Operation; (3)1.5 Amp capacity; (4)4,000 VRMS I/O Isolation; (5)Solid-State Reliability; (6)UL recognized; (7)ESD Tolerance: 4000V Human Body Model; 500V Machine Model.

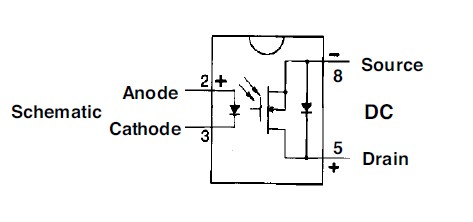

Diagrams
