Product Summary

The tlp3052 is a Photocoupler. The applications of the tlp3052 include Office Machine, Household Use Equipment, Triac Driver and Solid State Relay.

Parametrics

tlp3052 absolute maximum ratings: (1)Forward current: 50 mA; (2)Forward current derating: -0.7 mA/℃; (3)Peak forward current (100 μs pulse, 100 pps): 1 A; (4)Power dissipation: 100 mW; (5)Power dissipation derating: -1.0 mW/℃; (6)Reverse voltage: 5 V; (7)Junction temperature: 125 ℃.

Features

tlp3052 features: (1)Peak off.state voltage: 600 V (min.); (2)Trigger LED current: 10 mA (max.); (3)On-state current: 100 mA (max.); (4)UL recognized: UL1577, file no. E67349; (5)Isolation voltage: 5000 Vrms (min.).

Diagrams

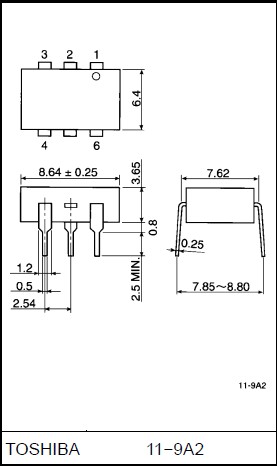

tlp3052 dimension
