Product Summary
he XC62FP2702PR is a group of positive voltage output, three-pin regulator, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The XC62FP2702PR consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. Applications are (1)Battery Powered Equipment; (2)Palmtops; (3)Portable Cameras and Video Recorders; (4)Reference Voltage Sources.
Parametrics
XC62FP2702PR absolute maximum ratings: ((1)Input Voltage: 12 V; (2)Output Voltage: VSS-0.3 to VIN+0.3 V; (3)Output Current: 500 mA; (4)Continuous Total Power Dissipation SOT-23: 150 mW; (5)Continuous Total Power Dissipation SOT-89: 500 mW; (6)Continuous Total Power Dissipation TO-92: 300 mW; (7)Operating Ambient Temperature: -40 to +85 °C; (8)Storage Temperature: -40 to +85 °C.
Features
XC62FP2702PR features: (1)Maximum Output Current : 250mA (within max. power dissipation, VOUT = 5.0V); (2)Output Voltage Range : 2.0V ~ 6.0V in 0.1V increments (1.5V ~ 1.9V for custom products); (3)Highly Accurate: Output voltage ±2% (±1% for semi-custom products); (4)Low Power Consumption : Typ. 2.0μA @ VOUT=5.0V; (5)Output Voltage Temperature Characteristics : Typ. ±100ppm/°C; (6)Input Stability : Typ. 0.2%/V; (7)Small Input-Output Differential : IOUT = 100mA @ VOUT = 5.0V with a 0.12V differential; (8)Ultra Small Packages : SOT-23 (150mW)mini-mold, SOT-89 (500mW)mini-power mold TO-92 (300mW).

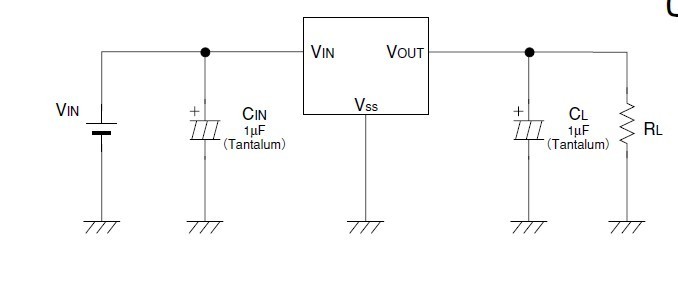

Diagrams
