Product Summary

The upc358g2-e1-a is a dual operational amplifier which is designed to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the power supply current drain is very low. Further advantage of the upc358g2-e1-a, the input commonmode voltage range includes ground in the linear mode.

Parametrics

upc358g2-e1-a absolute maximum ratings: (1)Voltage between V+ and V–: V+ – V– –0.3 to +32 V; (2)Differential Input Voltage VID: ±32 V; (3)Input Voltage Note 2 VI V––: -0.3 to V–+32 V; (4)Output Voltage Note 3 VO V––: -0.3 to V++0.3 V; (5)Power Dissipation C Package PT: 350 mW; (6)Output Short Circuit Duration: Indefinite s; (7)Operating Ambient Temperature TA: –20 to +80 ℃; (8)Storage Temperature Tstg: –55 to +125 ℃.

Features

upc358g2-e1-a features: (1)Internally frequency compensation; (2)Wide output voltage swing V- to V+ -1.5 V; (3)Common mode input voltage range includes V-; (4)Wide supply voltage range: 3 V to 30 V (Single); ±1.5 V to ±5 V (Split); (5)Output short circuit protection.

Diagrams

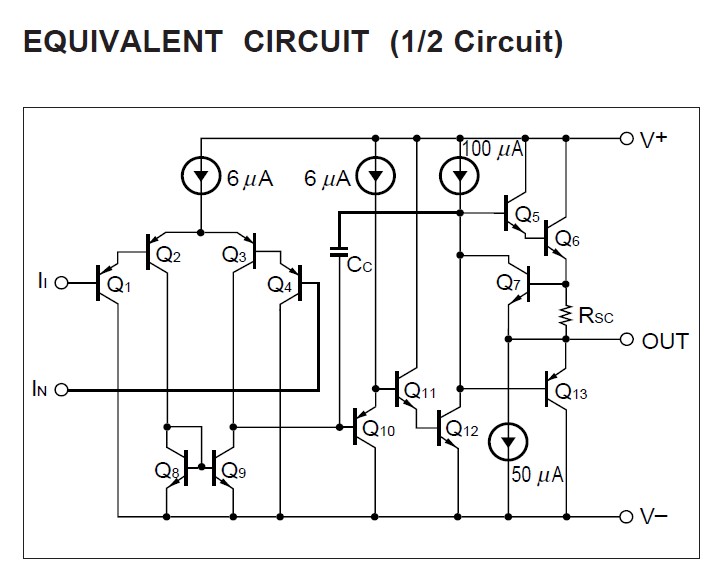

upc358g2-e1-a pin connection
