Product Summary
The tle4264g is a 5-V low-drop fixed-voltage regulator in an SOT-223 package. The IC regulates an input voltage VI in the range 5.5 V < VI < 45 V to VQrated = 5.0 V. The maximum output current is more than 120 mA. This IC is short circuit proof and features temperature protection that disables the circuit at over temperature.
Parametrics
tle4264g absolute maximum ratings:(1)Input voltage, VI: minus 42 to 45V; (2)Input current II: limited internally; (3)Output voltage, VQ:1 to 16V; (4)Output current. IQ: limited internally; (5)Current IGND, 50mA; (6)Junction temperature, Tj: minus 150 °C; (7)Storage temperature, Tstg: 50 150 °C; (8)Input voltage, VI: 5.5 to 45V; (9)Junction temperature, Tj: minus 40 to 150°C; (10)System-air Rth, SA: 100 K/W soldered in System-case Rth SC25 K/W.
Features
tle4264g features:(1)Output voltage tolerance ￡ ± 2 %; (2)Low-drop voltage; (3)Very low current consumption; (4)Overtemperature protection; (5)Short-circuit proof; (6)Suitable for use in automotive electronics; (7)Reverse polarity.

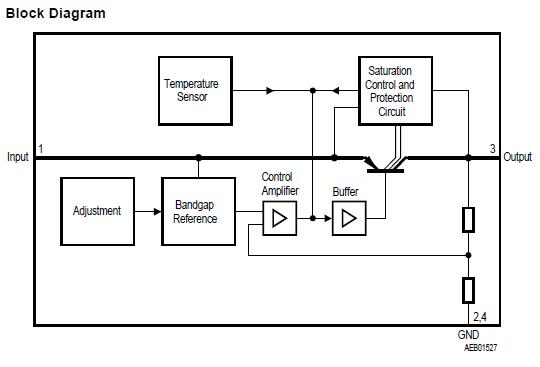

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE4264G |
Infineon Technologies |
Low Dropout (LDO) Regulators 5V LW Drop VOLT REGULATOR 200mA |
Data Sheet |
|
|
||||||||||||||
|
TLE4264GXT |
Infineon Technologies |
Low Dropout (LDO) Regulators 5-V Low Drop Fixed Voltage Regulator |
Data Sheet |
|
|
||||||||||||||
