Product Summary
The tk15420mtl-g is a vidoe line driver IC. The tk15420mtl-g contains 2 channels. The tk15420mtl-g is an operational amplifier type and the voltage gain is adjustable with an external resistor. The tk15420mtl-g is suitable for replacement of Motorola’s video line driver IC MC14577CF. The tk15420mtl-g is available in the SOP-8 surface mount package. The applications of the tk15420mtl-g include Video Equipment, Digital Cameras, CCD Cameras, TV Monitors, Video Tape Recorders, LCD Televisions.
Parametrics
tk15420mtl-g absolute maximum ratings: (1)Supply Voltage: 14 V; (2)Operating Voltage Range: 4.0 to 12.0 V; (3)Power Dissipation (Note 1): 400 mW; (4)Storage Temperature Range: -55 to +150 ℃; (5)Operating Temperature Range: -25 to +85 ℃; (6)Input Frequency: 20 MHz.
Features
tk15420mtl-g features: (1)Fixed Gain (6 dB); (2)Internal 75 Ω Drivers; (3)Very Small Output Capacitor at SAG Function Pin; (4)Active High ON/OFF Control; (5)Very Low Standby Current (typ. ICCS ≤ 25 μA); (6)Internal Summing Circuit of Y/C Signal.

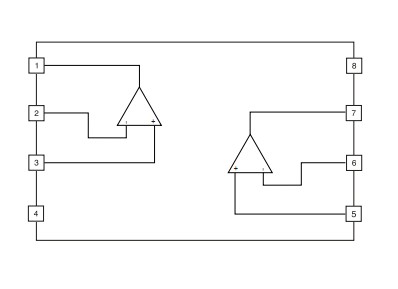

Diagrams
