TC7S02F

2-input NOR gate, 5V, ±20mA, BGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.05~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 6000 :	0.05 / Piece

PartNumber:: TC7S02F

Brand:: Toshiba Semiconductor - TOSHIBA | Pack: BGA | D/C: 05+

Availability:: Supply Ability: 6000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-15

From Other Seller

Part Number:TC7S02F
US $0.05 - 0.05
Quantity:

piece

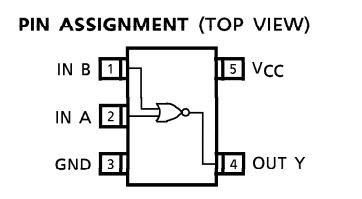

Product Summary

The tc7s02f is a high speed C2MOS 2-input NOR gate fabricated with silicon gate C2MOS technology. The tc7s02f achieves high speed operation similar to equivalent LSTTL while maintaining the C2MOS low power dissipation. All inputs of the tc7s02f is equipped with protection crcuits against static discharge or transient excess voltage.

Parametrics

tc7s02f absolute maximum ratings: (1) supply voltage range Vcc: -0.5 to 7V; (2) DC input voltage VIN: -0.5 to Vcc +0.5V; (3) DC output voltage VOUT: -0.5 to Vcc +0.5V; (4) Input diode current IIK: ±20mA; (5) Output diode current IOK: ±20mA; (6) DC output current Iout: ±12.5mA; (7) DC VCC/Ground current ICC: ±25mA; (8) Power dissipation PD: 200mW; (9) Storage temperature Tstg: -65 to +150°C; (10) Lead temperature (10s) TL: 260°C.

Features

tc7s02f features: (1) high speed: tpd=7ns (Typ.) at Vcc=5V; (2) low power dissipation: Icc=1μA (Max.) at Ta=25°C; (3) high noise immunity: VNIL=28% Vcc (Min.) ; (4) Output drive capability: 5LSTTL loads; (5) balanced propagation delays: tpLH=tpHL; (6) wide operating voltage range: Vcc (opr) =2-6V.
