Product Summary
The tc4052bf is a CMOS digital integrated circuit. The tc4052bf is multiplexers with capabilities of selection and mixture of analog signal and digital signal. The tc4052bf has 8 channels configuration. The digital signal to the control terminal turns "ON" the corresponding switch of each channel, with large amplitude (VOO-VEE) can be switched by the control signal with small logical amplitude (V00-Vssl- For example, in the case of Voo=5V Vss=OV and VEE = -5V, signals between - 5V and +5V can be switched from the logical circuit with single power supply of 5 volts. As the ON resistance of each switch is low, these can be connected to the circuits with low input impedance.
Parametrics
tc4052bf absolute maximum ratings: (1)DC Supply Voltage: -0.5-20 V; (2)DC Supply Voltage: -0.5-20 V; (3)Control Input Voltage: VSS - 0.5-VDD + 0.5 V; (4)Switch I10 Voltage: VEE - 0.5-VDD + 0.5 V; (5)Control Input Current: ±10 mA; (6)Power Dissipation: 300 (DI P)1180 (SOIC) mW; (7)Operating Temperature Range: -40 to 85 ℃; (8)Storage Temperature Range: -65 to 150 ℃.
Features
tc4052bf features: (1)Control Input High Voltage: 3.5 V; (2)Control Input Low Voltage: 1.5 V; (3)On-State Resistance: 5 Ω; (4)Quiescent Supply Current: 150 μA.

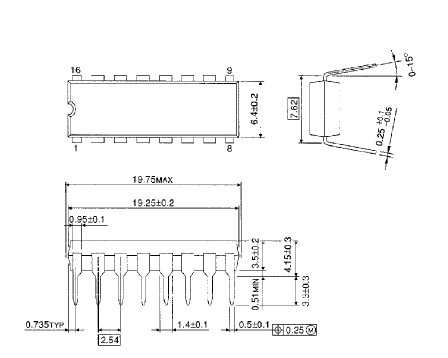

Diagrams
