Product Summary

The SS8050DBU is a 2W Output Amplifier of Portable Radios in Class B Push-pull Operation. The Collector Current is 1.5A and Collector Power Dissipation is 2W.

Parametrics

SS8050DBU absolute maximum ratings: (1)Collector-Base Voltage: 40 V; (2)Collector-Emitter Voltage: 25 V; (3)Emitter-Base Voltage: 6 V; (4)Collector Current: 1.5 A; (5)Collector Power Dissipation: 1W; (6)Junction Temperature: 150℃; (7)Storage Temperature: -65 ~ 150℃.

Features

SS8050DBU features: (1)Collector Current: 1.5A; (2)Collector Power Dissipation: 2W.

Diagrams

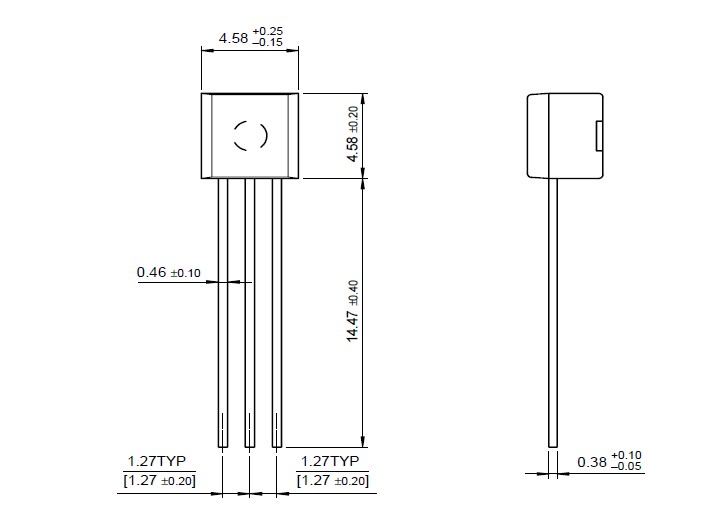

SS8050DBU pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SS8050DBU
SS8050DBU
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN/40V/1.5A
Data Sheet
0-1: $0.03
1-25: $0.02
25-100: $0.02
100-250: $0.02
