Product Summary

The spx5205m5-l-3.3/tr is a 150mA, low-noise LDO voltage regulator. The applicaitons are (1)PDA; (2)Battery Powered Systems; (3)Cellular Phone; (4)Cordless Telephones; (5)Radio Control Systems; (6)Laptop, Palmtop, and Notebook Computers; (7)Portable Consumer Equipment; (8)Portable Instrumentation; (9)Bar Code Scanners; (10)SMPS Post-Regulator.

Parametrics

spx5205m5-l-3.3/tr absolute maximum ratings: (1)Thermal Shutdown: Internally Limited; (2)Lead Temperature (Soldering, 5 seconds): 260℃; (3)Operating Junction Temperature Range: -40 to +125℃; (4)Input Supply Voltage: -20V to +20V; (5)Enable Input Voltage: -20V to +20V.

Features

spx5205m5-l-3.3/tr features: (1)Low Noise Output LDO: 40μVRMS Possible; (2)1% Initial Accuracy; (3)Very Low Quiecent Current: 70μA; (4)Low Dropout Voltage (210mV at 150mA) ; (5)Current and Thermal Limiting; (6)Reverse-Battery Protection; (7)Wide Range of Fix Output Voltages:1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V and 5.0V; (8)Zero Off-Mode Current; (9)Small 5-Pin SOT-23; (10)Pin Compatible to MIC5205/MAX8877 (fixed Options Only) and AS3815.

Diagrams

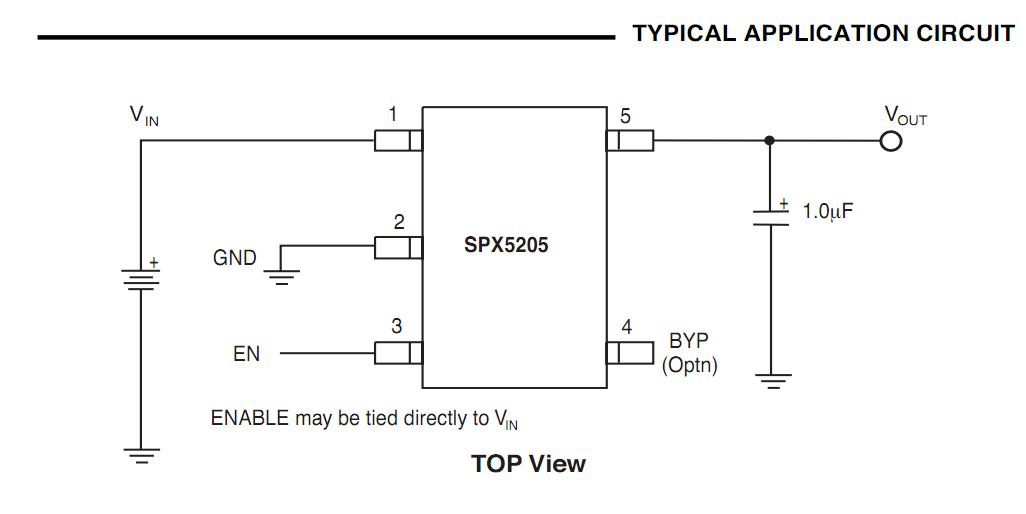

spx5205m5-l-3.3/tr pin connection
