SN74LVC1G125DBVR

single bus buffer gate, 5.5V, ±24mA, BGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.04~0.04 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 30000 :	0.04 / Piece

PartNumber:: SN74LVC1G125DBVR

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 30000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-15

From Other Seller

Part Number:SN74LVC1G125DBVR
US $0.04 - 0.04
Quantity:

piece

Product Summary

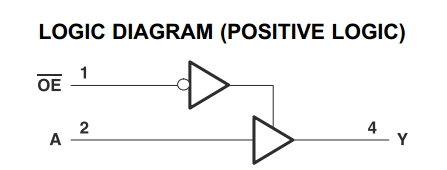

The sn74lvc1g125dbvr is a single bus buffer gate with 3-state output. The sn74lvc1g125dbvr is designed for 1.65-V to 5.5-V Vcc operation. The sn74lvc1g125dbvr is fully specified for partial-power-down applications using Ioff.

Parametrics

sn74lvc1g125dbvr absolute maximum ratings: (1) Supply voltage range Vcc: -0.5 to 6.5V; (2) Input voltage range VI: -0.5 to 6.5V; (3) Voltage range applied to any output in the high-impedance or power-off state Vo: -0.5 to 6.5V; (4) Voltage range applied to any output in the high or low state Vo: -0.5 to Vcc +0.5V; (5) Input clamp current IOK: -50mA (VI< 0) ; (6) Output clamp current IOK: -50mA (VO< 0) ; (7) Continuous output current Io: ±50mA; (8) Continuous current through Vcc or GND: ±100mA; (9) Storage temperature range Tstg: -65 to +150°C.

Features

sn74lvc1g125dbvr features: (1) Available in the Texas Instruments NanoStar and NanoFree Packages; (2) Supports 5-V VCC Operation; (3) Inputs Accept Voltages to 5.5V; (4) Max tpd of 3.7 ns at 3.3V; (5) Low Power Consumption, 10-μA Max ICC; (6) ±24-mA Output Drive at 3.3V; (7) Ioff Supports Partial-Power-Down Mode Operation; (8) ESD Protection Exceeds JESD 22.
