Product Summary
The SN74HC14PWR is a hex schmitt-trigger inverter.
Parametrics
SN74HC14PWR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: D package: 86℃/W, DW package: 96℃/W, N package: 80℃/W, NS package: 76℃/W,PW package: 113°C/W (7)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74HC14PWR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 20-μA Max ICC; (4)Typical tpd = 11 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max.

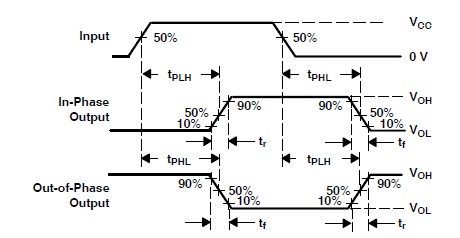

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() SN74HC14PWR |
![]() Texas Instruments |
![]() Inverters Hex Schmitt-Trigger |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() SN74HC14PWRE4 |
![]() Texas Instruments |
![]() Inverters Hex Schmitt-Trigger Inverters |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() SN74HC14PWRG4 |
![]() Texas Instruments |
![]() Inverters Hex Schmitt-Trigger Inverters |
![]() Data Sheet |
![]()
|
|
