Product Summary

The si-3018km-tl is a Regulator. Designed to meet the high-current requirements in industrial and consumer applications; embedded core, memory, or logic supplies; TVs, VCRs, and office equipment, the si-3018km-tl voltage regulator offers the reduced dropout voltage and low quiescent current essential for improved efficiency. The si-3018km-tl delivers a regulated output at up to 1 A. Integrated thermal and overcurrent protection enhance overall system reliability. Devices with other output voltages are also available. Applications are (1)TVs, VCRs, Electronic Games; (2)Embedded Core, Memory, or Logic Supplies; (3)Printers and Other Office Equipment; (4)Industrial Machinery; (5)Secondary-Side Stabilization of Multi-Output SMPS.

Parametrics

si-3018km-tl absolute maximum ratings: (1)Input Voltage, VI: 17 V; (2)Output Current, IO: 1 A; (3)Junction Temperature, TJ: +125°C; (4)Storage Temperature Range, TS: -30°C to +125°C.

Features

si-3018km-tl features: (1)1 A Output Current at 1.8 V; (2)0.6 V Maximum Dropout Voltage at IO = 1 A; (3)Fast Transient Response; (4)1 μA Maximum Standby Current; (5)Remote Voltage Sensing; (6)Foldback Current Limiting; (7)Ground Tab for Superior Heat Dissipation; (8)Thermal Protection.

Diagrams

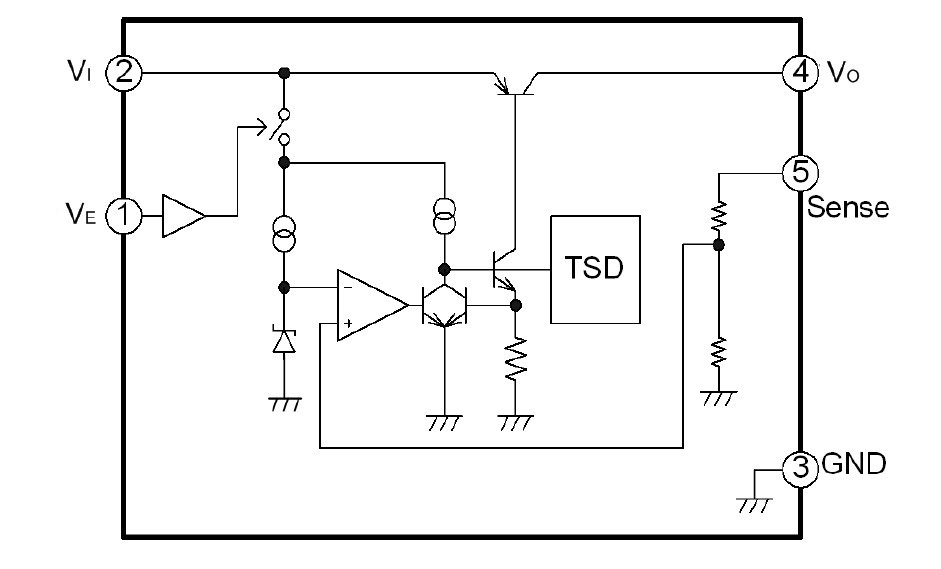

si-3018km-tl pin connection
