S-1112B30MC-L6PTFG

Product Summary

The s-1112b30mc-l6ptfg is a Low dropout CMOS voltage regulator. The s-1112b30mc-l6ptfg is a positive voltage regulator with a low dropout voltage, high output voltage accuracy, and low current consumption developed based on CMOS technology. A built-in low on-resistance transistor provides a low dropout voltage and large output current, and a built-in over current protector prevents the load current from exceeding the current capacitance of the output transistor. An ON/OFF circuit ensures a long battery life. Compared with the voltage regulators using the conventional CMOS process, a larger variety of capacitors are available, including small ceramic capacitors. Small SNT-6A(H) (S-1112 Series only) and SOT-23-5 packages realize high-density mounting. In SOT-23-5, the lineup includes the S-1112 and S-1122 Series, which differ in pin configuration. The applications of the s-1112b30mc-l6ptfg include Power supply for battery-powered devices, Power supply for, personal communication devices, Power supply for home electric/electronic appliances, Power supply for cellular phones.

Parametrics

s-1112b30mc-l6ptfg absolute maximum ratings: (1)Input voltage: VSS . 0.3 to VSS + 7 V; (2)Output voltage: VSS . 0.3 to VIN + 0.3 V; (3)Operating ambient temperature: -40 to +85 ℃; (4)Storage temperature: -40 to +125 ℃.

Features

s-1112b30mc-l6ptfg features: (1)Output voltage: 1.5 V to 5.5 V, selectable in 0.1 V steps; (2)High-accuracy output voltage: ±1.0%; (3)Low dropout voltage: 190 mV typ. (3.0 V output product, IOUT = 100 mA); (4)High peak current capability: 150 mA output is possible (at VIN . VOUT(S) + 1.0 V); (5)Built-in ON/OFF circuit: Ensures long battery life; (6)Low ESR capacitor can be used: A ceramic capacitor of 0.47 μF or more can be used for the output capacitor; (7)High ripple rejection: 80 dB typ. (at 1.0 kHz); (8)Built-in over current protector: Over current of output transistor can be restricted; (9)Small package: SNT-6A(H)(S-1112 series only), SOT-23-5.

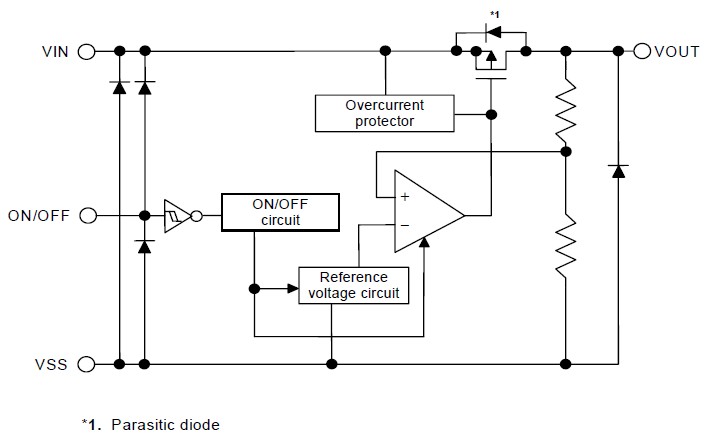

Diagrams
