Product Summary
The RN2426 is a PNP epitaxial type (switching, inverter circuit, interface circuit and driver circuit applications).
Parametrics
RN2426 absolute maximum ratings: (1)Collector-Base voltage: -50 V; (2)Collector-Emitter voltage: -50 V; (3)Emitter-Base voltage: -5 V; (4)Collector current: -800 mA; (5)Collector power dissipation: 200 mW; (6)Junction temperature: 150 ℃; (7)Storage temperature range: -55~150 ℃.
Features
RN2426 features: (1)High current type (IC(MAX)= -800mA); (2)With built-in bias resistors; (3)Simplify circuit design; (4)Reduce a quantity of parts and manufacturing process; (5)Low VCE (sat); (6)Complementary to RN1421~RN1427.

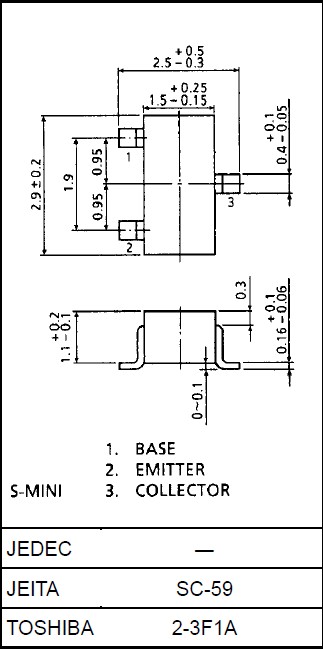

Diagrams
