Product Summary
The ncp303lsn45t1g is a second generation ultra-low current voltage detector that contain a programmable time delay generator. The ncp303lsn45t1g is specifically designed for use as reset controllers in portable microprocessor based systems where extended battery life is paramount. The ncp303lsn45t1g features a highly accurate undervoltage detector with hysteresis and an externally programmable time delay generator. This combination of features prevents erratic system reset operation. Applications are (1)Microprocessor Reset Controller; (2)Low Battery Detection; (3)Power Fail Indicator; (4)Battery Backup Detection.
Parametrics

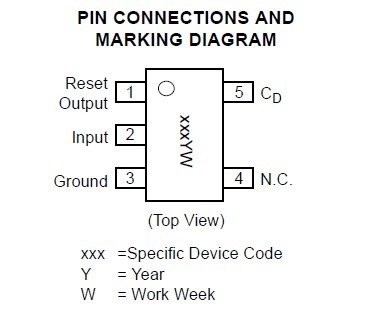

ncp303lsn45t1g absolute maximum ratings: (1)Input Power Supply Voltage (Pin 2)Vin: 12 V; (2)Delay Capacitor Pin Voltage (Pin 5)VCD: -0.3 to Vin + 0.3 V; (3)Output Current (Pin 1)(Note 2)IOUT: 70 mA; (4)Maximum Junction Temperature TJ: +125 °C; (5)Operating Ambient Temperature Range TA: -40 to +85 °C; (6)Storage Temperature Range Tstg: -55 to +150 °C.
Features
ncp303lsn45t1g features: (1)Quiescent Current of 0.5 A Typical; (2)High Accuracy Undervoltage Threshold of 2.0%; (3)Externally Programmable Time Delay Generator; (4)Wide Operating Voltage Range of 0.8 V to 10 V; (5)Complementary or Open Drain Output; (6)Active Low or Active High Reset; (7)Pb-Free Packages are Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NCP303LSN45T1G |
ON Semiconductor |
Voltage Detectors / Monitors 4.5V Detector w/Reset Low |
Data Sheet |
|
|
||||||||||||
