Product Summary
The ncp1117dt33rkg is a low dropout positive voltage regulator that is capable of providing an output current that is in excess of 1.0 A with a maximum dropout voltage of 1.2 V at 800 mA over temperature. The ncp1117dt33rkg contains nine fixed output voltages of 1.5 V, 1.8 V, 1.9 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V that have no minimum load requirement to maintain regulation. Also included is an adjustable : resistors. On chip trimming adjusts the reference/output voltage to within ±1.0% accuracy. Internal protection features of the ncp1117dt33rkg consist of output current limiting, safe operating area compensation, and thermal shutdown. The ncp1117dt33rkg can operate with up to 20 V input. Devices are available in SOT-223 and DPAK packages. Applications are: (1)Consumer and Industrial Equipment Point of Regulation; (2)Active SCSI Termination for 2.85 V Version; (3)Switching Power Supply Post Regulation; (4)Hard Drive Controllers; (5)Battery Chargers.
Parametrics
ncp1117dt33rkg absolute maximum ratings: (1)Input Voltage, Vin: 20 V; (2)Thermal Resistance, Junction-to-Ambient, Minimum Size Pad, RθJA: 160℃/W; (3)Thermal Resistance, Junction-to-Case,RθJC: 15℃/W; (4)Maximum Die Junction Temperature Range, TJ: -55 to 150℃; (5)Storage Temperature Range, Tstg: -65 to 150℃; (6)Operating Ambient Temperature Range, TA: 0 to +125℃.
Features
ncp1117dt33rkg features: (1)Output Current in Excess of 1.0 A; (2)1.2 V Maximum Dropout Voltage at 800 mA Over Temperature; (3)Fixed Output Voltages of 1.5 V, 1.8 V, 1.9 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V; (4)Adjustable Output Voltage Option; (5)No Minimum Load Requirement for Fixed Voltage Output Devices; (6)Reference/Output Voltage Trimmed to ±1.0%; (7)Current Limit, Safe Operating and Thermal Shutdown Protection; (8)Operation to 20 V Input; (9)NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes; (10)Pb-Free Packages are Available.

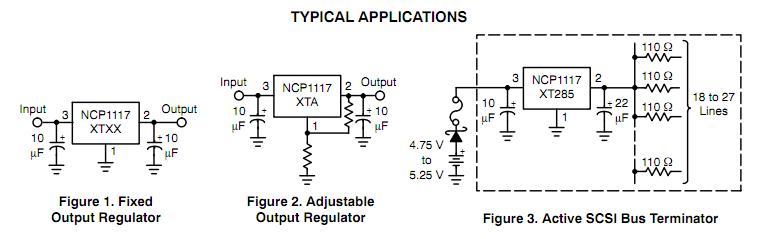

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NCP1117DT33RKG |
ON Semiconductor |
Low Dropout (LDO) Regulators 3.3V 1A Positive |
Data Sheet |
|
|
|||||||||||||
