Product Summary
The MSM5116400D-60TS-K is a 4,194,304-word 4-bit dynamic RAM fabricated in Okis silicon-gate CMOS technology. The MSM5116400D-60TS-K achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM5116400D-60TS-K is available in a 26/24-pin plastic SOJ, 26/24-pin plastic TSOP.
Parametrics
MSM5116400D-60TS-K absolute maximum ratings: (1)Voltage on Any Pin Relative to VSS: -0.5 to 7.0 V; (2)Short Circuit Output Current: 50 mA; (3)Power Dissipation: 1 W; (4)Operating Temperature: 0 to 70 °C; (5)Storage Temperature: -55 to 150 °C.
Features
MSM5116400D-60TS-K features: (1)4,194,304-word 4-bit configuration; (2)Single 5V power supply, ±10% tolerance; (3)Input : TTL compatible, low input capacitance; (4)Output : TTL compatible, 3-state; (5)Refresh : 4096 cycles/64 ms; (6)Fast page mode, read modify write capability; (7)CAS before RAS refresh, hidden refresh, RAS-only refresh capability; (8)Multi-bit test mode capability.

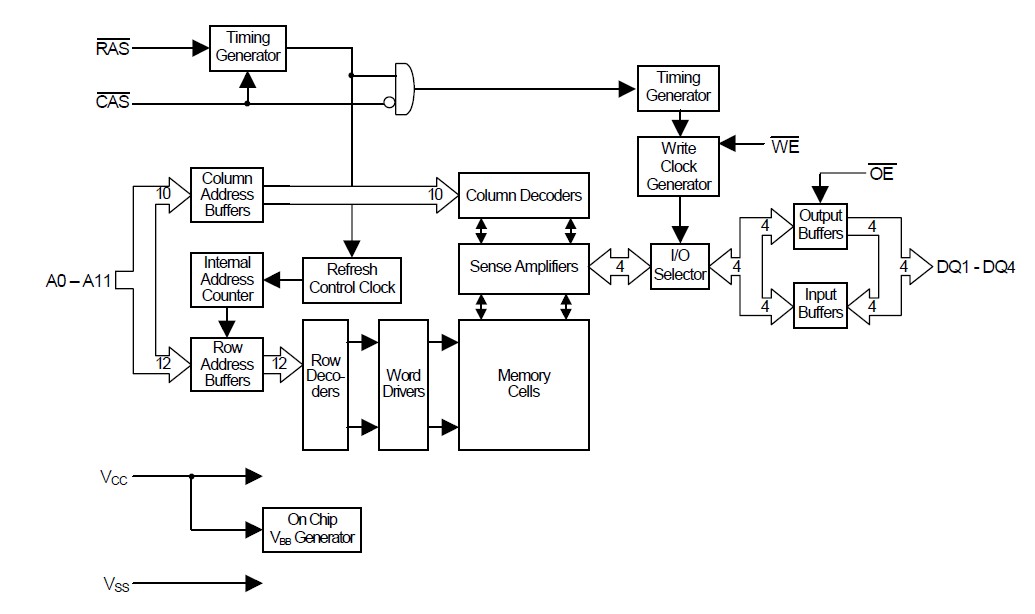

Diagrams
