Product Summary

The mic5202-5.0bm is a dual linear voltage regulator with very low dropout voltage (typically 17mV at light loads and 210mV at 100mA), and very low ground current (1mA at 100mA output–each section), offering better than 1% initial accuracy with a logic compatible ON/OFF switching input. Designed especially for hand-held battery powered devices, the mic5202-5.0bm is switched by a CMOS or TTL compatible logic signal. Applications are (1)Cellular Telephones; (2)Laptop, Notebook, and Palmtop Computers; (3)Battery Powered Equipment; (4)PCMCIA VCC and VPP Regulation/Switching; (5)Bar Code Scanners; (6)SMPS Post-Regulator/ DC to DC Modules; (7)High Efficiency Linear Power Supplies.

Parametrics

mic5202-5.0bm absolute maximum ratings: (1)Lead Temperature (Soldering, 5 seconds): 260°C; (2)Operating Junction Temperature Range : –40°C to +125°C; (3)Input Supply Voltage : –20V to +60V; (4)ENABLE Input Voltage : –20V to +60V; (5)Input Voltage: 2.5V to 26V; (6)Operating Junction Temperature Range : –40°C to +125°C; (7)ENABLE Input Voltage : 0V to VIN; (8)IQ Quiescent Current VCONTROL ≤0.7V (Shutdown): 0.01 mA; (9)PSRR Ripple Rejection: 75 dB.

Features

mic5202-5.0bm features: (1)Packaged as 8 pin SOIC or die; (2)ICS lowest cost PLL clock plus reference; (3)Zero ppm multiplication error; (4)Easy to cascade with other 5xx series; (5)Input crystal frequency of 5 - 27 MHz; (6)Input clock frequency of 2 - 50 MHz; (7)Output clock frequencies up to 160 MHz; (8)Low jitter - 50 ps one sigma; (9)Compatible with all popular CPUs; (10)Duty cycle of 45/55 up to 160 MHz; (11)Operating voltages of 3.0 to 5.5V; (12)Industrial temperature version available; (13)25mA drive capability at TTL levels; (14)Advanced, low power CMOS process.

Diagrams

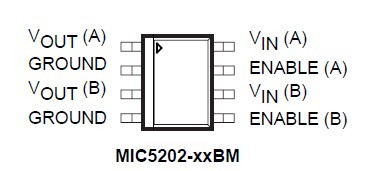

mic5202-5.0bm pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MIC5202-5.0BM
MIC5202-5.0BM

IC REG LDO 5V .1A 8-SOIC
Data Sheet
Negotiable
MIC5202-5.0BM TR
MIC5202-5.0BM TR

IC REG LDO 5V .1A 8-SOIC
Data Sheet
Negotiable
