MC74HC4066ADTR2

MC74HC4066ADTR2, Flash memory, 14.0 V, 25 mA, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 200 :	0.13 / Piece

PartNumber:: MC74HC4066ADTR2

Brand:: ON Semiconductor - ON | Pack: TSSOP | D/C: 05+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-11

From Other Seller

Part Number:MC74HC4066ADTR2
US $0.13 - 0.13
Quantity:

piece

Product Summary

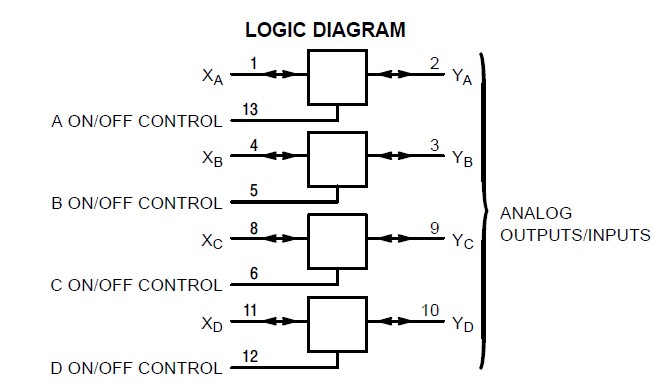

The MBM29LV160BE70NC-FS3 is a 16M-bit, 3.0 V-only Flash memory organized as 2M bytes of 8 bits each or 1M words of 16 bits each. The MC74HC4066ADTR2 is a quad analog switch/ multiplexer/demultiplexer. The MC74HC4066A utilizes silicon–gate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF–channel leakage current.

Parametrics

MC74HC4066ADTR2 absolute maximum ratings: (1)Positive DC Supply Voltage (Referenced to GND): -0.5 to + 14.0 V; (2)Analog Input Voltage (Referenced to GND): -0.5 to Vcc + 0.5 V; (3)Digital Input Voltage (Referenced to GND): -0.5 to Vcc + 0.5 V; (4)DC Current Into or Out of Any Pin: ±25 mA; (5)Power Dissipation in Still Air, Plastic DIPt: 750 mW; (6)Power Dissipation in Still Air, EIAJ/SOIC Packaget: 500 mW; (7)Power Dissipation in Still Air, TSSOP Packaget: 450 mW; (8)Storage Temperature: -65 to + 150 °C; (9)Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP, SOIC or TSSOP Package): 260 °C.

Features

MC74HC4066ADTR2 features: (1)Fast Switching and Propagation Speeds; (2)High ON/OFF Output Voltage Ratio; (3)Low Crosstalk Between Switches; (4)Diode Protection on All Inputs/Outputs; (5)Wide Power–Supply Voltage Range (VCC – GND)= 2.0 to 12.0 Volts; (6)Analog Input Voltage Range (VCC – GND)= 2.0 to 12.0 Volts; (7)Low Noise; (8)Chip Complexity: 44 FETs or 11 Equivalent Gates.
