Product Summary

The MC68360FE25C is a QUad Integrated Communication Controller. The MC68360FE25C is a versatile one-chip integrated microprocessor and peripheral combination that can be used in a variety of controller applications. The MC68360FE25C particularly excels in communications activities.

Parametrics

MC68360FE25C absolute maximum ratings: (1) controller, -0.3 to +6.5V; (2) Input Voltage Vin: -0.3 to 6.5V; (3) Operating Temperature Range (CQFP and PGA for normal and extended temperature part) TA: 0 to 70°C, -40 to +85°C; (4) Maximum operating Junction Temperture(BGA only) Tj: 115°C; (5) Minimum operation Ambient Temperature TA: 0°C; (6) Storage Temperature Range Tstg: -55 to +150°C.

Features

MC68360FE25C features: (1) CPU32+ Processor (4.5 MIPS at 25 MHz) ; (2) Memory Controller (Eight Banks) ; (3) Time-Slot Assigner; (4) Supports Two TDM Channels; (5) Four General-Purpose Timers; (6) Two Independent DMAs (IDMAs) .

Diagrams

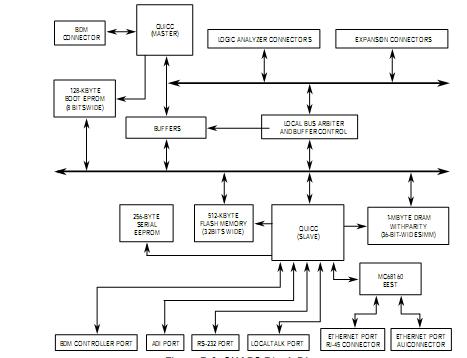

MC68360FE25C Block Diagram
