MC34119DR2

MC34119DR2, audio amplifier, 16VDC, 8.0Ω, 200 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.11~0.11 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 200 :	0.11 / Piece

PartNumber:: MC34119DR2

Brand:: Unisonic Technologies - UTC | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-08

From Other Seller

Part Number:MC34119DR2
US $0.11 - 0.11
Quantity:

piece

Product Summary

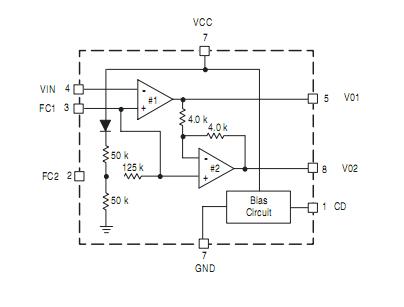

The mc34119dr2 is a low power audio amplifier integrated circuit intended for telephone applications, such as in speakerphones. The mc34119dr2 provides differential speaker outputs to maximize output swing at low supply voltages (2.0 V minimum). Coupling capacitors to the speaker are not required. Open loop gain is 80 dB, and the closed loop gain is set with two external resistors. A Chip Disable pin permits powering down and/or muting the input signal.

Parametrics

mc34119dr2 absolute maximum ratings: (1)Supply Voltage:2.0VDC to 16VDC; (2)Voltage @ CD (Pin 1):0.0VDC to VCC; (3)Load Impedance (at VIN):8.0Ω; (4)Peak Load Current:±200 mA; (5)Differential Gain (5.0 kHz Bandwidth):0.0dB to 46dB; (6)Ambient Temperature:-20℃ to 70℃.

Features

mc34119dr2 features: (1)Wide Operating Supply Voltage Range (2.0 V to 16 V), Allows Telephone Line Powered Applications; (2)Low Quiescent Supply Current (2.7 mA Typ) for Battery Powered Applications; (3)Chip Disable Input to Power Down the IC; (4)Low Power--Down Quiescent Current (65 μA Typ); (5)Drives a Wide Range of Speaker Loads (8.0Ω and Up); (6)Output Power Exceeds 250 mW with 32Ω Speaker; (7)Low Total Harmonic Distortion (0.5% Typ); (8)Gain Adjustable from <0 db="" to="">46 dB for Voice Band; (9)Requires Few External Components; (10)Pb-Free Packaging Designated by Suffix Code EF.
