Product Summary
The mc12022lva is a dual modulus prescaler. The mc12022lva can be used with CMOS synthesizers requiring negative edges to trigger internal counters. A Divide Ratio Control (SW) permits selection of a 64/65 or 128/129 divide ratio as desired. The Modulus Control (MC) selects the proper divide number after SW has been biased to select the desired divide ratio.
Parametrics
mc12022lva absolute maximum ratings: (1)Power Supply Voltage, Pin 2, VCC: –0.5 to 7.0 Vdc; (2)Operating Temperature Range, TA: –40 to 85℃; (3)Storage Temperature Range, Tstg: –65 to 150℃.
Features
mc12022lva features: (1)1.1 GHz Toggle Frequency; (2)Supply Voltage of 4.5 to 5.5 V; (3)Low–Power 7.5 mA Typical; (4)Operating Temperature Range of –40 to 85℃; (5)Short Setup Time (tset) 16ns Maximum @ 1.1 GHz; (6)Modulus Control Input Level Is Compatible With Standard CMOS and TTL.

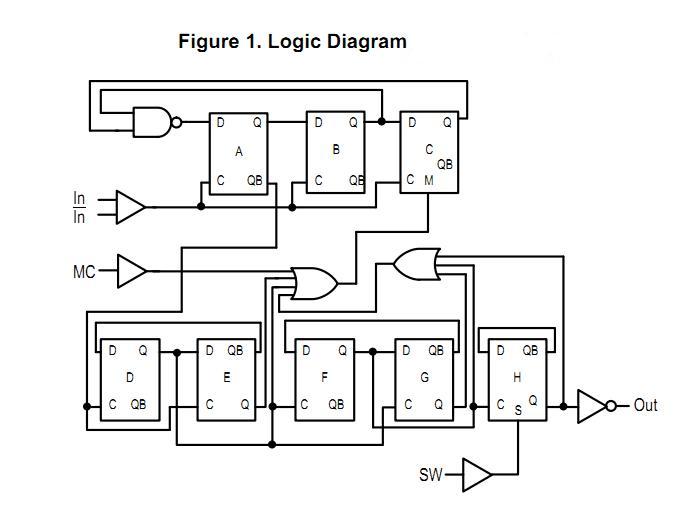

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC12022LVA |
Other |
|
Data Sheet |
Negotiable |
|
||||
