Product Summary
The MC10H116MEL is a triple differential amplifier designed for use in sensing differential signals over long lines and is a functional/pinout duplication of the MC10H116MEL, with 100% improvement in propagation delay and no increase in power supply current.
Parametrics
MC10H116MEL absolute maximum ratings: (1)Power Supply (VCC = 0):-8.0 to 0 Vdc; (2)Input Voltage (VCC = 0):0 to VEE Vdc; (3)Output Current: Continuous:50mA, Surge:100mA; (4)Operating Temperature Range:0 to +75℃; (5)Storage Temperature Range: Plastic:-55 to +150℃, Ceramic:-55 to +165℃.
Features
MC10H116MEL features: (1)Propagation Delay, 1.0 ns Typical; (2)Power Dissipation 85 mW Typ/Pkg (same as MECL 10KΩ); (3)Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range); (4)Voltage Compensated; (5)MECL 10K Compatible; (6)Pb-Free Packages are Available.

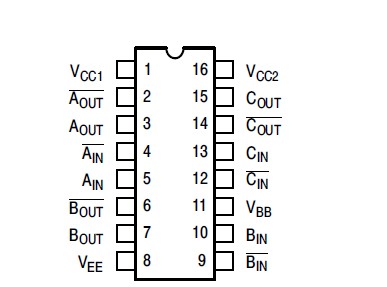

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC10H116MEL |
ON Semiconductor |
Bus Receivers Triple Diff |
Data Sheet |
Negotiable |
|
||||
|
MC10H116MELG |
ON Semiconductor |
Bus Receivers Triple Diff Amplifier |
Data Sheet |
Negotiable |
|
||||
