Product Summary
The mb15e03pfv is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 1.2 GHz prescaler. The 1.2 GHz prescaler has a dual modulus division ratio of 64/65 or 128/129 enabling pulse swallowing operation. The supply voltage range is between 2.4 V and 3.6 V. The mb15e03pfv uses the latest BiCMOS process, as a result, the supply current is typically 2.0 mA at 2.7 V. A refined charge pump supplies a well balanced output currents of 1.5 mA or 6 mA.
Parametrics
mb15e03pfv absolute maximum ratings: (1)Power supply voltage, VCC: -0.5 to 4.0 V; VP: VCC to 6.0 V; (2)Input voltage VI: -0.5 to VCC +0.5 V; (3)Output voltage, VO: GND to VCC V; VO: GND to VP V; (4)Storage temperature, Tstg: -55 to +125℃.
Features
mb15e03pfv features: (1)High frequency operation: 1.2 GHz max; (2)Low power supply voltage: VCC = 2.4 V to 3.6 V; (3)Ultra Low power supply current: ICC = 2.0 mA typ. (VCC = Vp = 2.7 V, Ta = +25℃, in locking state); ICC = 2.5 mA typ. (VCC = Vp = 3 V, Ta = +25℃, in locking state); (4)Direct power saving function: Power supply current in power saving mode; Typ. 0.1 mA (VCC = Vp = 3 V, Ta = +25℃), Max. 10 mA (VCC = Vp = 3 V); (5)Dual modulus prescaler: 64/65 or 128/129; (6)Serial input 14-bit programmable reference divider: R = 3 to 16,383.

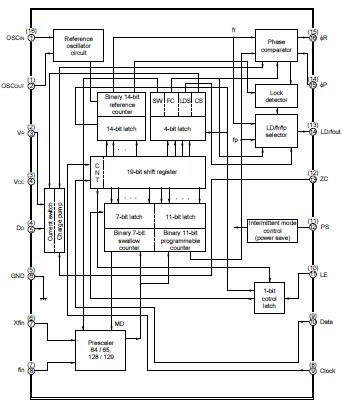

Diagrams
