Product Summary

The max9502gexk+ is a Video Amplifier. The max9502gexk+ small, low-power video amplifier with integrated reconstruction filter operates from a supply voltage as low as 2.5V. The small size and the low minimum supply voltage make the max9502gexk+ ideal for portable applications such as mobile phones, digital still cameras, and camcorders. The max9502gexk+ DC-couples the input and the output, resulting in a very small solution. The max9502gexk+ input can be directly connected to the output of a video digital-toanalog converter (DAC). The reconstruction filter is implemented as a 4th-order Chebyshev with a minimum passband of 5.5MHz, 3dB attenuation at 8MHz, and 55dB attenuation at 27MHz. The applications of the max9502gexk+ include Mobile Phones/Smartphones, Digital Still Cameras, Portable Media Players and Camcorders.

Parametrics

max9502gexk+ absolute maximum ratings: (1)VCC to GND: -0.3V to +4V; (2)SHDN, IN, OUT to GND: -0.3V to (VCC + 0.3V); (3)OUT Short-Circuit Duration to VCC, GND: Continuous; (4)Continuous Power Dissipation: 247mW; (5)Operating Temperature Range: -40℃ to +85℃; (6)Junction Temperature: +150℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

max9502gexk+ features: (1)Tiny 6-Pin μDFN (1mm x 1.5mm x 0.8mm) and 5-Pin SC70 Packages; (2)DC-Coupled Input and Output Save Board Space; (3)4-Pole Chebyshev Filter; (4)5.5MHz Passband; (5)55dB Attenuation at 27MHz; (6)0.01μA Low-Current Shutdown Mode; (7)2.5V to 3.6V Single-Supply Operation; (8)Video Amplifier with Fixed Gains of +6dB (MAX9502G) or +12dB (MAX9502M).

Diagrams

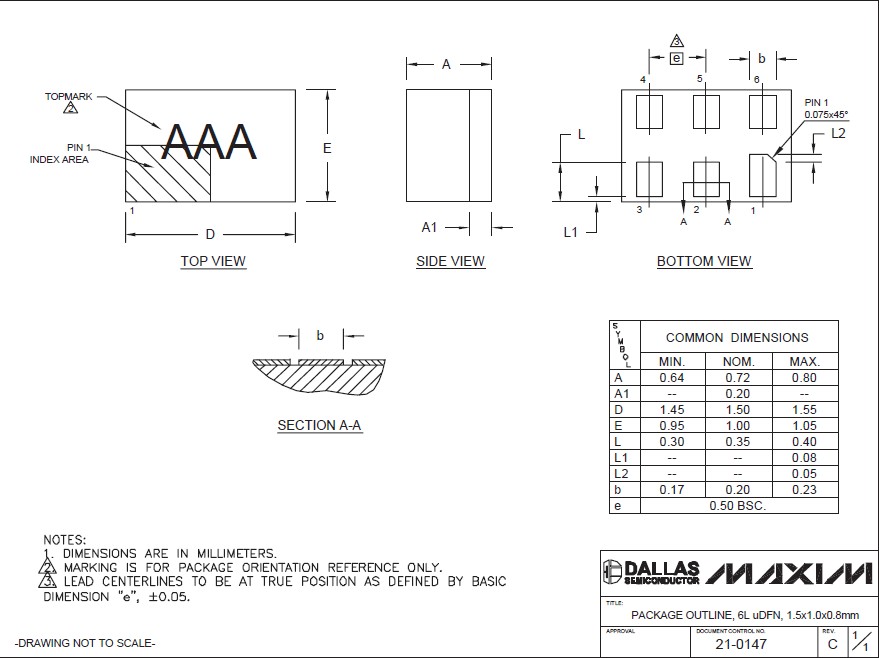

max9502gexk+ dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX9502GEXK+T
MAX9502GEXK+T
Maxim Integrated Products
Video Amplifiers 2.5V Video Amplifier
Data Sheet
0-1: $0.74
1-25: $0.56
25-50: $0.50
50-100: $0.49
