MAX1772EEI

MAX1772EEI, battery-charger control IC, 30V, 50mA, 860mW, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.93~2.93 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 200 :	2.93 / Piece

PartNumber:: MAX1772EEI

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-10

From Other Seller

Part Number:MAX1772EEI
US $2.93 - 2.93
Quantity:

piece

Product Summary

The max1772eei is a highly-integrated, multichemistry battery-charger control IC that simplifies the construction of accurate and efficient chargers. The max1772eei uses analog inputs to control charge current and voltage and can be programmed by the host or hardwired. High efficiency of the max1772eei is achieved by a buck topology with synchronous rectification. Applications include (1)Notebook and Subnotebook Computers; (2)Personal Digital Assistants; (3)Hand-Held Terminals.

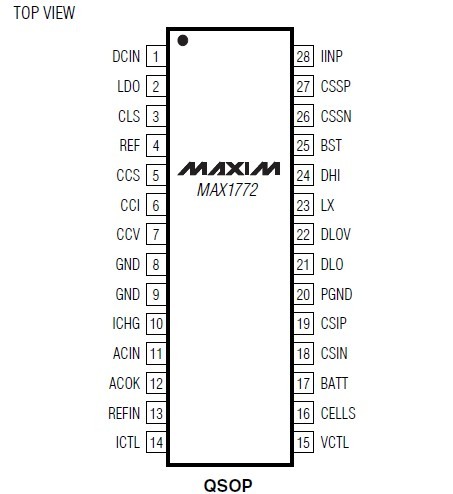

Parametrics

max1772eei absolute maximum ratings: (1)DCIN, CSSP, CSSN to GND: -0.3V to +30V; (2)BST to GND: -0.3V to +36V; (3)BST to LX: -0.3V to +6V; (4)DHI to LX : -0.3V to (BST + 0.3V); (5)LX to GND : -6V to +30V; (6)BATT, CSIP, CSIN to GND: -0.3V to 20V; (7)CSIP to CSIN or CSSP to CSSN or PGND to GND: -0.3V to +0.3V; (8)CCI, CCS, CCV, DLO, ICHG, IINP, ACIN, REF to GND : -0.3V to (VLDO + 0.3V); (9)DLOV, VCTL, ICTL, REFIN, CELLS, CLS, LDO, ACOK to GND : -0.3V to +6V; (10)DLOV to LDO: -0.3V to +0.3V; (11)DLO to PGND: -0.3V to (DLOV + 0.3V); (12)LDO Short-Circuit Current : 50mA; (13)Continuous Power Dissipation (TA = +70°C)28-Pin QSOP (derate 10.8mW/°C above +70°C): 860mW; (14)Operating Temperature Range: -40°C to +85°C; (15)Junction Temperature : 150°C; (16)Storage Temperature Range : -60°C to +150°C; (17)Lead Temperature (soldering, 10s): +300°C.

Features

max1772eei features: (1)Input Current Limiting; (2)±0.5% Output Voltage Accuracy Using Internal Reference (0°C to +85°C); (3)Programmable Battery Charge Current >4A; (4)Analog Inputs Control Charge Current and Charge Voltage; (5)Up to 18.2V (max)Battery Voltage; (6)8V to 28V Input Voltage; (7)>95% Efficiency; (8)99.99% (max)Duty Cycle for Low-Dropout Operation; (9)Charges Any Battery Chemistry: Li+, NiCd, NiMH, Lead Acid, etc..
