MAX1632EAI-T

MAX1632EAI-T, power-supply controller, 36V, 50mA, 762mW, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.79~1.79 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2000 :	1.79 / Piece

PartNumber:: MAX1632EAI-T

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 00+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-10

From Other Seller

Part Number:MAX1632EAI-T
US $1.79 - 1.79
Quantity:

piece

Product Summary

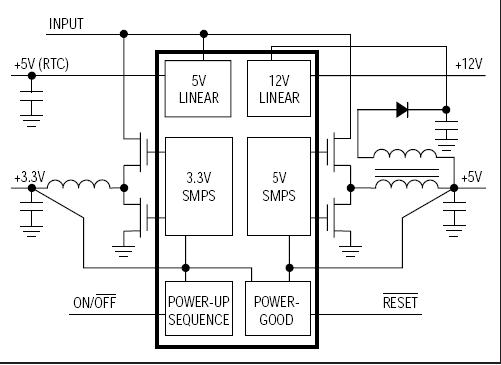

The max1632eai-t is a buck-topology, step-down, switch-mode, power-supply controller. The max1632eai-t generates logic-supply voltages in battery-powered systems. The max1632eai-t includes onboard power-up sequencing, power-good signaling with delay, digital soft-start, secondary winding control, lowdropout circuitry, internal frequency-compensation networks, and automatic bootstrapping. The applications of the max1632eai-t include Notebook and Subnotebook Computers, PDAs and Mobile Communicators, Desktop CPU Local DC-DC Converters.

Parametrics

max1632eai-t absolute maximum ratings: (1)V+ to GND: -0.3V to +36V; (2)PGND to GND: ±0.3V; (3)VL to GND: -0.3V to +6V; (4)BST3, BST5 to GND: -0.3V to +36V; (5)LX3 to BST3: -6V to +0.3V; (6)LX5 to BST5: -6V to +0.3V; (7)REF, SYNC, SEQ, STEER, SKIP, TIME/ON5, SECFB, RESET to GND: -0.3V to +6V; (8)VDD to GND: -0.3V to +20V; (9)RUN/ON3, SHDN to GND: -0.3V to (V+ + 0.3V); (10)12OUT to GND: -0.3V to (VDD + 0.3V); (11)DL3, DL5 to PGND: -0.3V to (VL + 0.3V); (12)DH3 to LX3: -0.3V to (BST3 + 0.3V); (13)DH5 to LX5: -0.3V to (BST5 + 0.3V); (14)VL, REF Short to GND: .Momentary; (15)12OUT Short to GND: Continuous; (16)REF Current: +5mA to -1mA; (17)VL Current: +50mA; (18)12OUT Current: +200mA; (19)VDD Shunt Current: +15mA; (20)Operating Temperature Ranges MAX163_CAI: 0℃ to +70℃; (21)MAX163_EAI: -40℃ to +85℃; (22)Storage Temperature Range: -65℃ to +160℃; (23)Continuous Power Dissipation (TA = +70℃) SSOP (derate 9.52mW/℃ above +70°C): 762mW; (24)Lead Temperature (soldering, 10sec): +300℃.

Features

max1632eai-t features: (1)96% Efficiency; (2)+4.2V to +30V Input Range; (3)2.5V to 5.5V Dual Adjustable Outputs; (4)Selectable 3.3V and 5V Fixed or Adjustable Outputs (Dual Mode.); (5)12V Linear Regulator; (6)Adjustable Secondary Feedback (MAX1631/MAX1634); (7)5V/50mA Linear Regulator Output; (8)Precision 2.5V Reference Output; (9)Programmable Power-Up Sequencing; (10)Power-Good (RESET) Output; (11)Output Overvoltage Protection (MAX1630/MAX1631/MAX1632); (12)Output Undervoltage Shutdown (MAX1630/MAX1631/MAX1632); (13)200kHz/300kHz Low-Noise, Fixed-Frequency Operation; (14)Low-Dropout, 99% Duty-Factor Operation; (15)2.5mW Typical Quiescent Power (+12V input, both SMPSs on); (16)4μA Typical Shutdown Current; (17)28-Pin SSOP Package.
