Product Summary
The max1547aetl-tg075 is a high-speed multi-channel analog-to-digital converter (ADC). The max1547aetl-tg075 has four analog input channels while the MAX158 has eight channels. Conversion time for both devices is 2.5μs. The max1547aetl-tg075 also features a 2.5V on-chip reference, forming a complete high-speed data acquisition system. Applications are (1)Digital Signal Processing; (2)High-Speed Data Acquisition; (3)Telecommunications; (4)High-Speed Servo Control; (5)Audio Instrumentation.
Parametrics
max1547aetl-tg075 absolute maximum ratings: (1)Supply Voltage, VDD to GND: 0V, +10V; (2)Voltage at Any Other Pins: GND -0.3V, VDD +0.3V; (3)Output Current (REF OUT): 30mA; (4)Power Dissipation (any package)to +75°C : 450mW; (5)Operating Temperature Ranges: 0°C to +70°C; (6)Storage Temperature Range : -65°C to +160°C; (7)Lead Temperature (soldering, 10sec): +300°C.
Features
max1547aetl-tg075 features: (1)One-Chip Data Acquisition System; (2)Four or Eight Analog Input Channels; (3)2.5μs per Channel Conversion Time; (4)Internal 2.5V Reference; (5)Built-In Track/Hold Function; (6)1/2LSB Error Specification; (7)Single +5V Supply Operation; (8)No External Clock; (9)New Space-Saving SSOP Package.

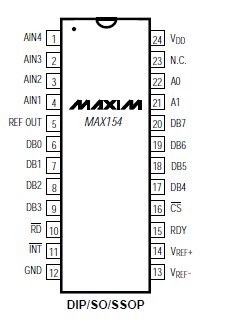

Diagrams
