Product Summary
The M62007FP is a semiconductor integrated circuits whose optimum use is for the detection of the rise and fall in the power supply to a microcomputer system in order to reset or release the microcomputer system. Application is prevention of malfunction of microcomputer systems in electronic,equipment such as OA equipment, industrial equipment,and home-use electronic appliances.
Parametrics
M62007FP absolute maximum ratings: (1)Supply voltage: 8 V; (2)Output sink current: 5 mA; (3)Power dissipation: 440 mW; (4)Thermal derating: 4.4 mW/°C; (5)Operating temperature: -20 to +75 °C; (6)Storage temperature: -40 to +125 °C.
Features
M62007FP features: (1)Bi-CMOS process realizes a configuration of low current dissipating circuits. Circuit current Icc=5μA(Typ.,normal mode,Vcc=5.0V)Icc=1μA(Typ.,backup mode,Vcc=2.5V); (2)Two-step detection of supply voltage: Detection voltage in normal mode (2 types)Vs=4.45V/4.25V(Typ.); Detection voltage in backup mode VBATT=2.15V(Typ.); (3)Two outputs: Reset output (RESET):Output of compulsive reset signal; Interruption output(INT):Output of interruption signal; (4)Two types of output forms:CMOS and open drain; (5)Two types of interruption output (INT)signals Pulse type (M62001~M62004); Hold type (M62005~M62008); (6)Two types of outline packages 5-pin plastic SIP (single in-line package)8-pin plastic SOP (mini flat package); (7)Output based on RAM backup mode (See the timing chart.).

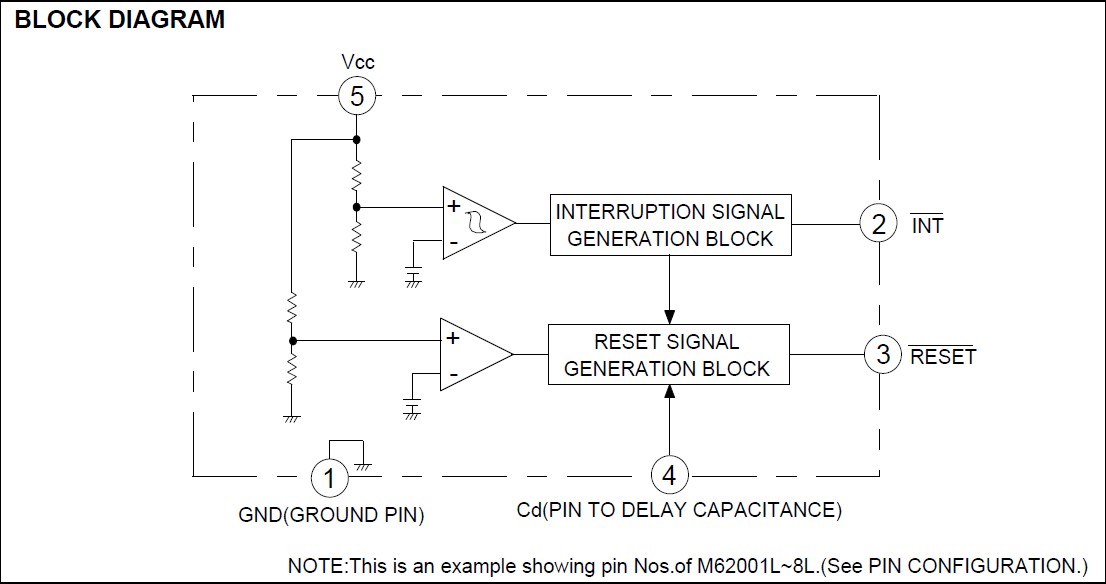

Diagrams
